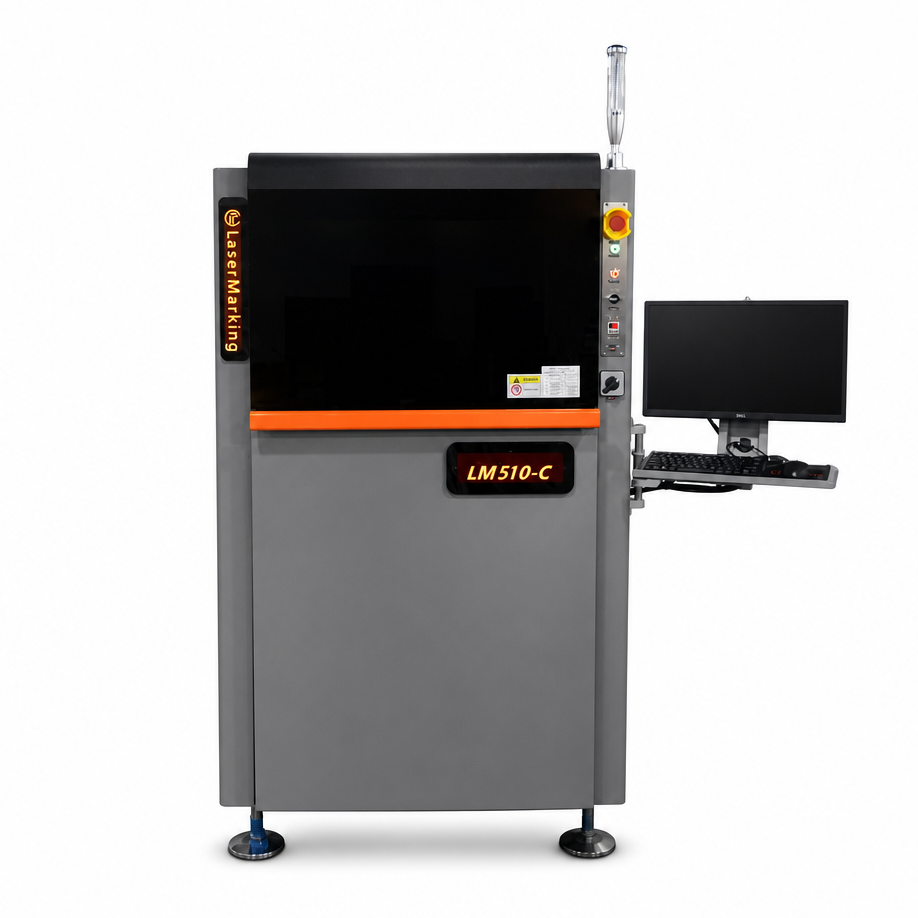

Inline Laser Marking System
LM510-C
Best for larger PCB marking
US-made Synrad 48-series CO₂ laser + XY servo platform for marking codes, texts and graphics on PCBs.Max PCB size：510*510mm
Features
The compact LM510-C CO₂ laser marker is easily integrated into automated production lines.
Premium US-made SYNRAD CO₂ laser head for prolonged service life.
X/Y servo system with precision ball screws and linear guides delivers high positioning accuracy.
CCD fiducial system automatically offsets PCB positional deviation.

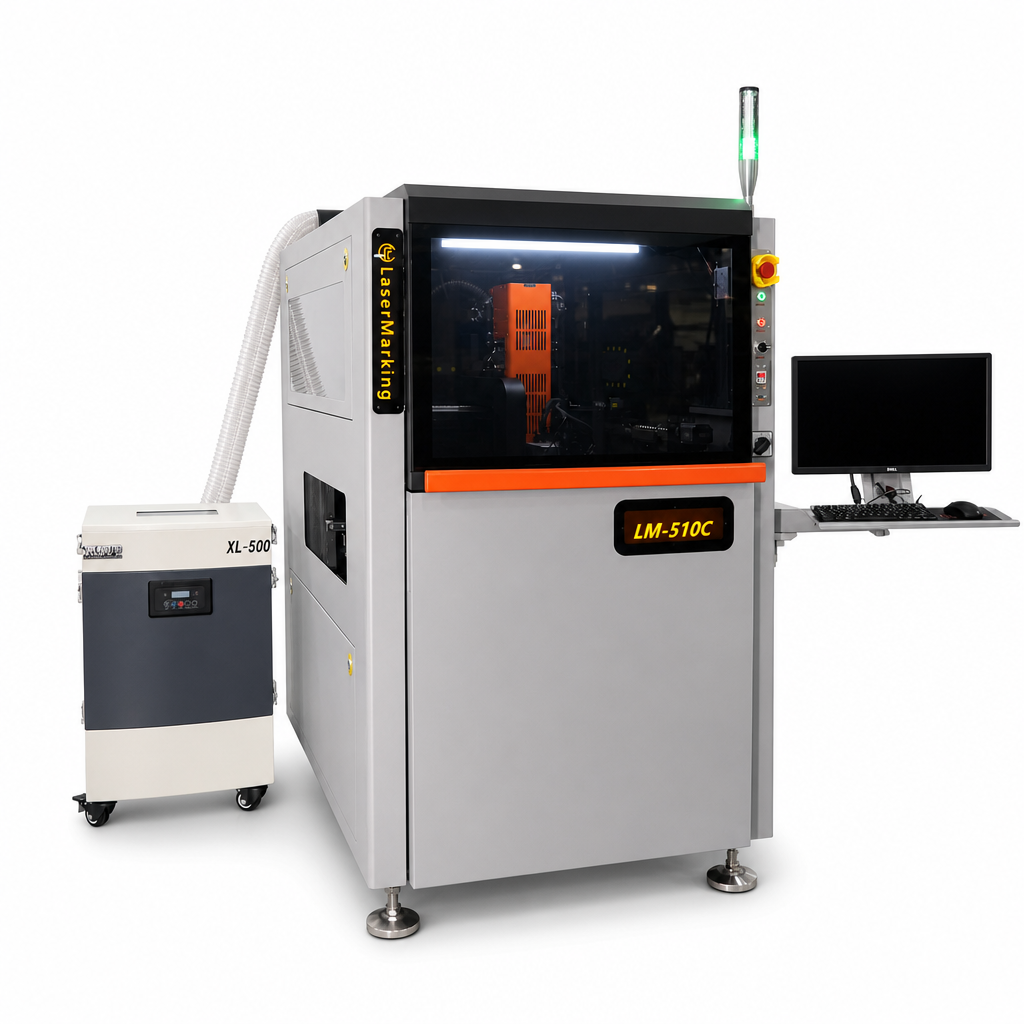

Standard fume extractor maintains a clean operating environment.
CCD barcode/QR verification prevents defective codes from flowing downstream.
Optional PCB flipping module supports auto flipping and double-sided marking.
Industrial PC (Windows 10) with professional full-English software for simple operation.
- Laser type
- CO₂ laser
- Laser wavelength
- 10640 nm
- Varifocal range
- 2D laser
- Working method
- Moving laser head
- Laser cooling
- Forced-air cooling
- Minimum 2D QR code marking size
- 2 mm × 2 mm
- Laser scanning range
- 55 × 55 mm
- Repeatable positioning accuracy
- ±0.025mm
- Positioning system
- CCD + mark recognition
- PCB Clamping system
- Standard configuration
- Conveying system
- 900 ± 20 mm, left-to-right
- Marking object
- Characters, 1D barcodes, QR codes, and drawing data
- Power supply
- 1-phase, AC 220 V, 50/60 Hz
- Power consumption
- 1.5 kW
- Machine size (standard)
- L 1101 × W 1656 × H 1880 mm
- Machine weight (standard)
- approx. 900 kg
