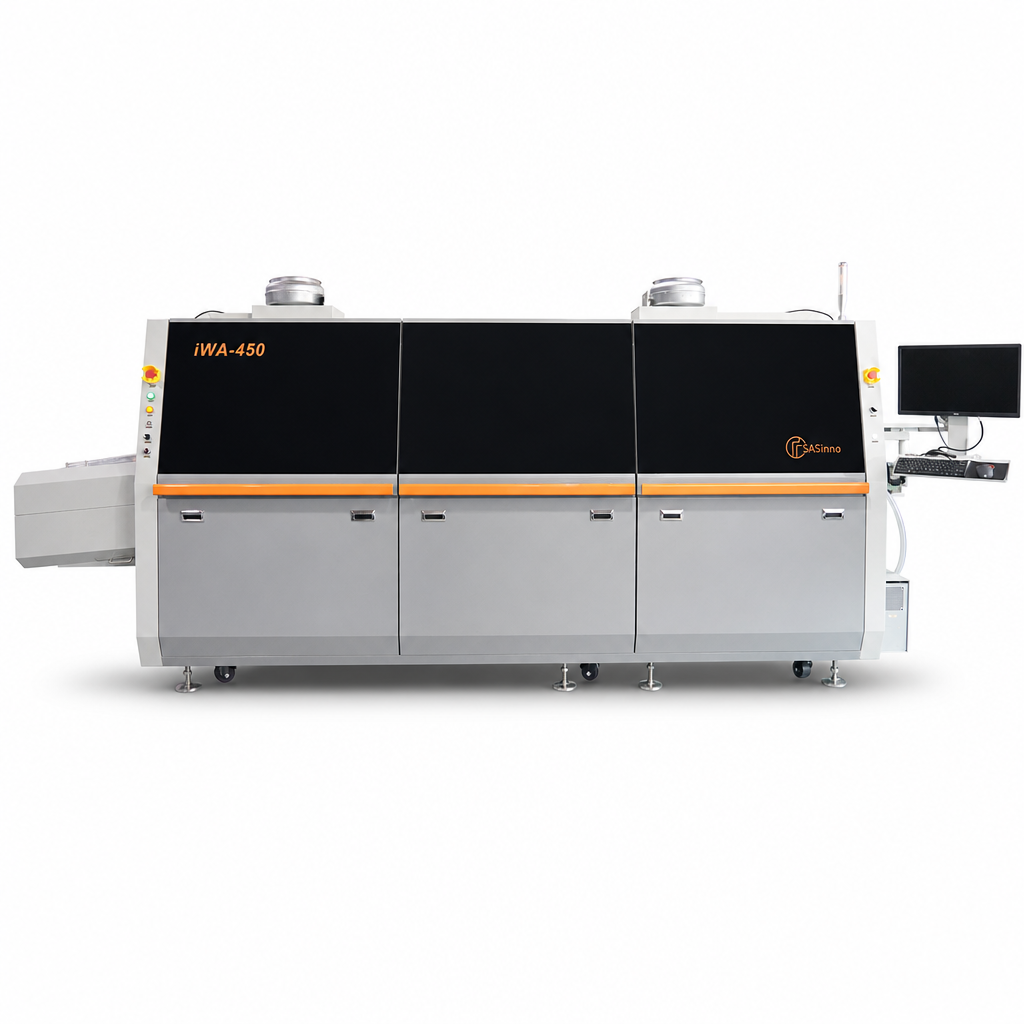

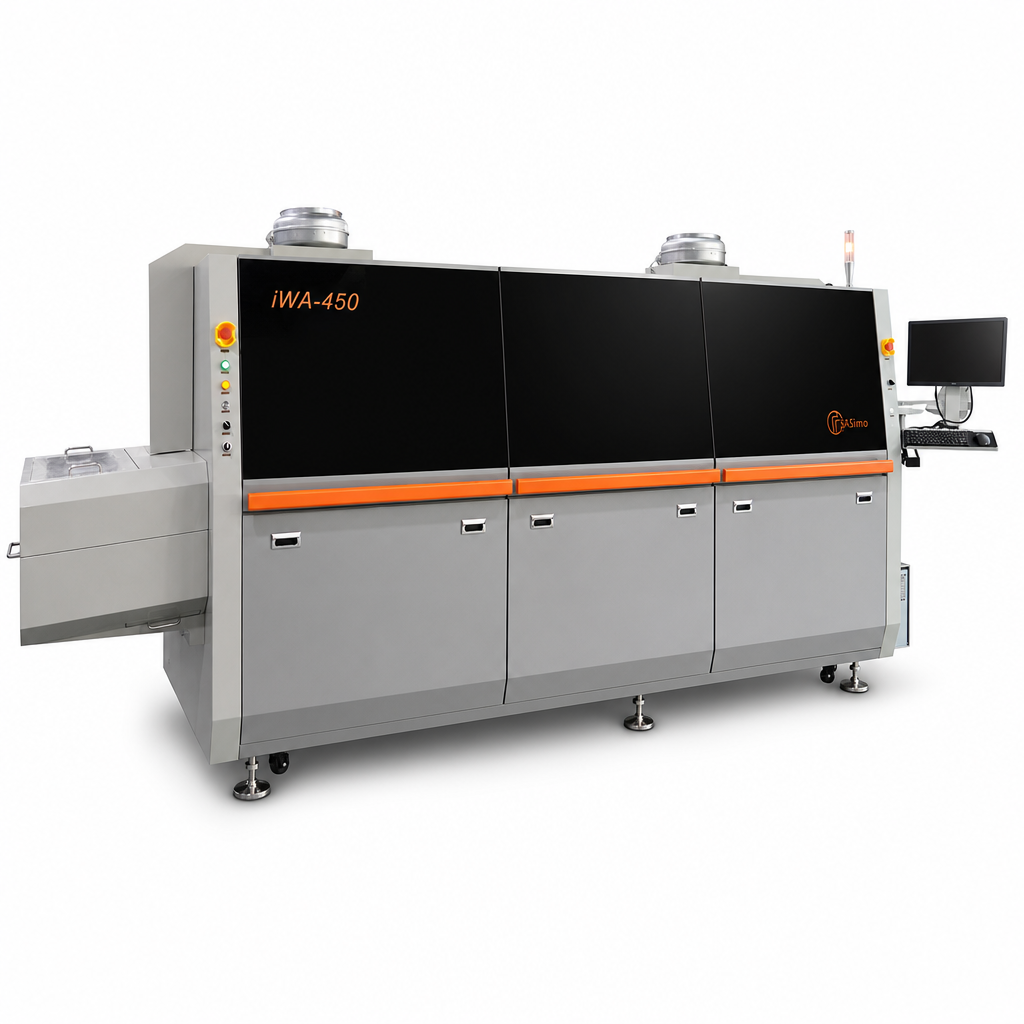

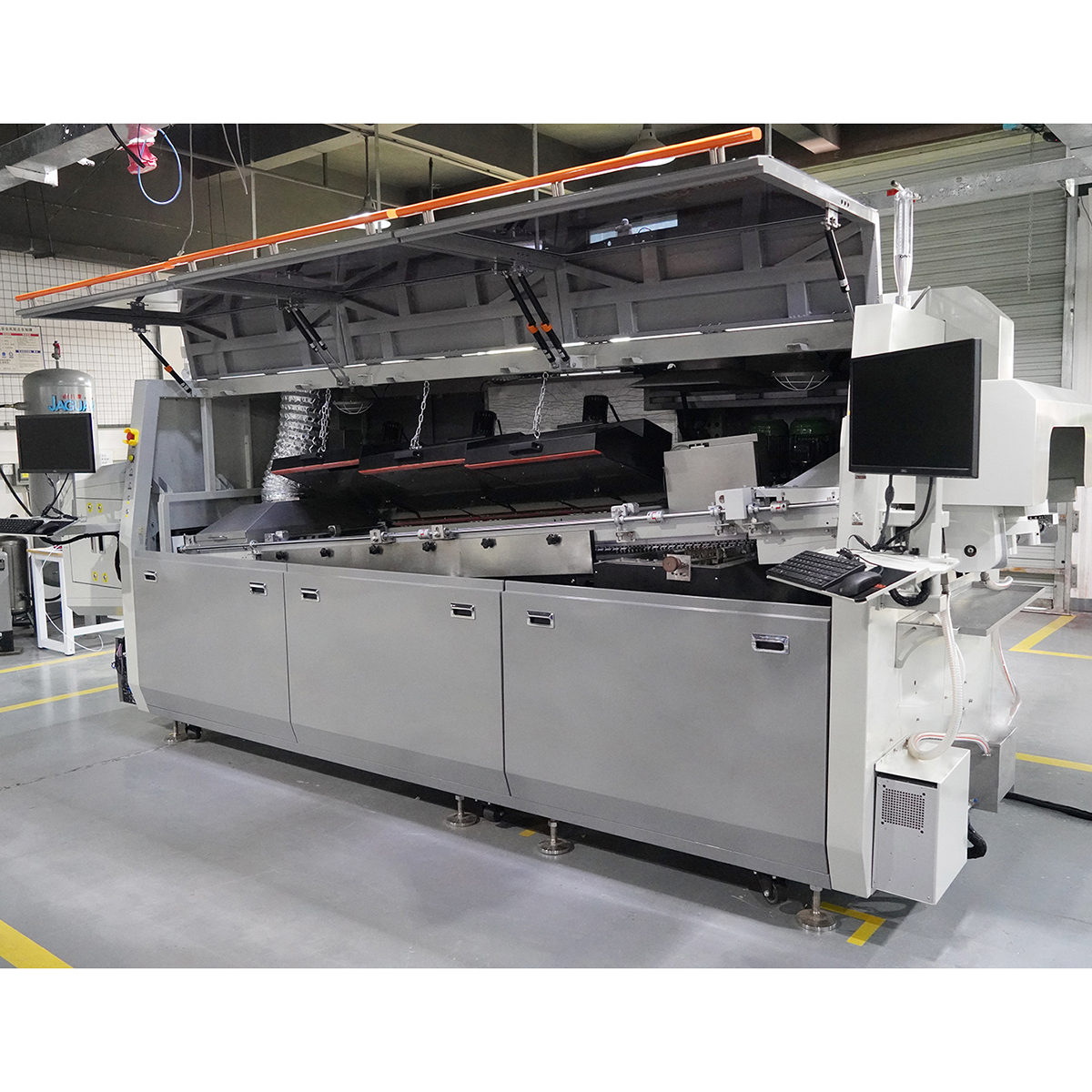

iWA Series Wave Solder Machine
iWA-450
Standard 450mm mass production
The iWA-450 is a lead-free wave soldering machine for mass production of PCBs with through-hole plug-in components. Supports Max PCB width 450mm.
Features
New industrial appearance design enhances the machine’s aesthetics.
PC + PLC control system ensures stable, safe, and efficient operation with ease of use.
Simple software interface, fully English, for effortless operation.
A one-week timer enables automatic on/off operation to pre-melt solder before work starts.
A specialized guide rail with strong support reduces deformation.
The servo-driven sprayer allows adjustable speed and spray width via software.
Non-stop selective flux spraying: use board/carrier images as background to set nozzle on/off time in motion path, saving flux and reducing waste.
- Running Power / General Power
- 10 kW / 36 kW
- Power Supply
- 3-phase 380 V or 3-phase 220 V
- Machine Dimensions
- 4465 (L) × 1550 (W) × 1812 (H) mm
- Control
- PC + English Windows11
- Conveyor
- 6° Ti finger conveyor
- Fluxer Type
- Spray
- Fluxer Clean
- Auto
- Spray Flux Path
- Selective
- Bottom Preheating Type
- Hot air convection
- Top Preheating Type
- Hot air convection
- Removable Solder Pot
- Standard With Trolley
- Solder Bar Auto Feed
- Option
- N2 Protection
- Optional; direct N₂ and short tunnel configurations available
- N2 Inline Heating
- Option
