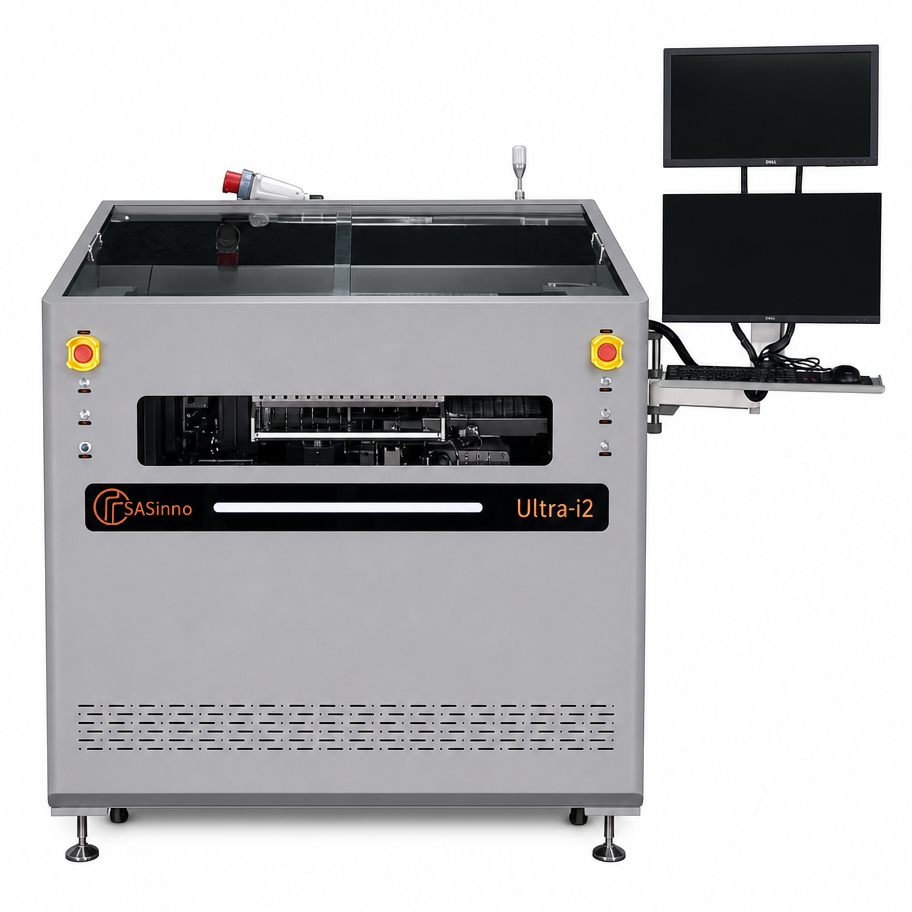

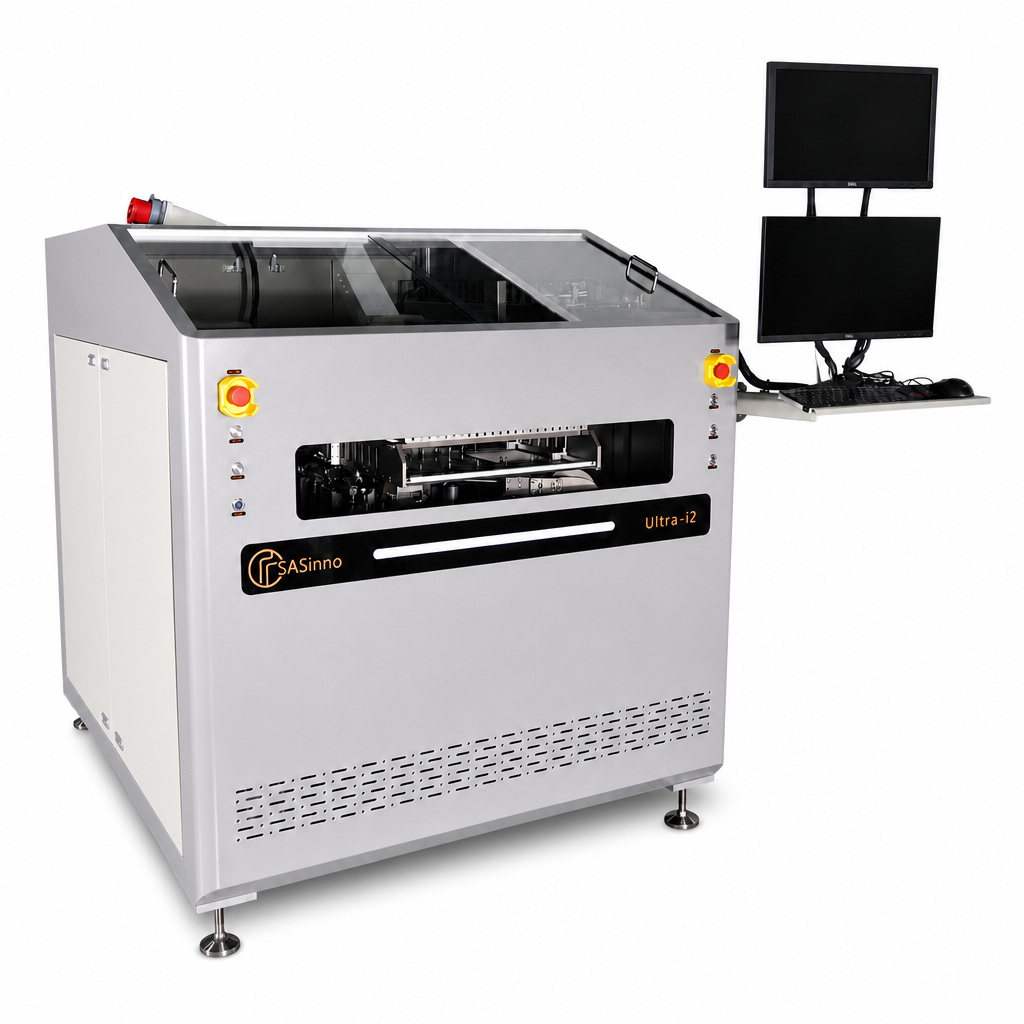

Offline Selective Soldering Machine
Ultra-i2
Offline dual-flux/pump flexible model
The Ultra-i2 is an offline selective wave soldering machine for PCBs with through-hole components, supports PCB board sizes up to a maximum of 460x510 mm.
Features
2 sets of drop-jet fluxers (high-precision flux application)
Top and bottom preheating modules (sufficient thermal preparation)

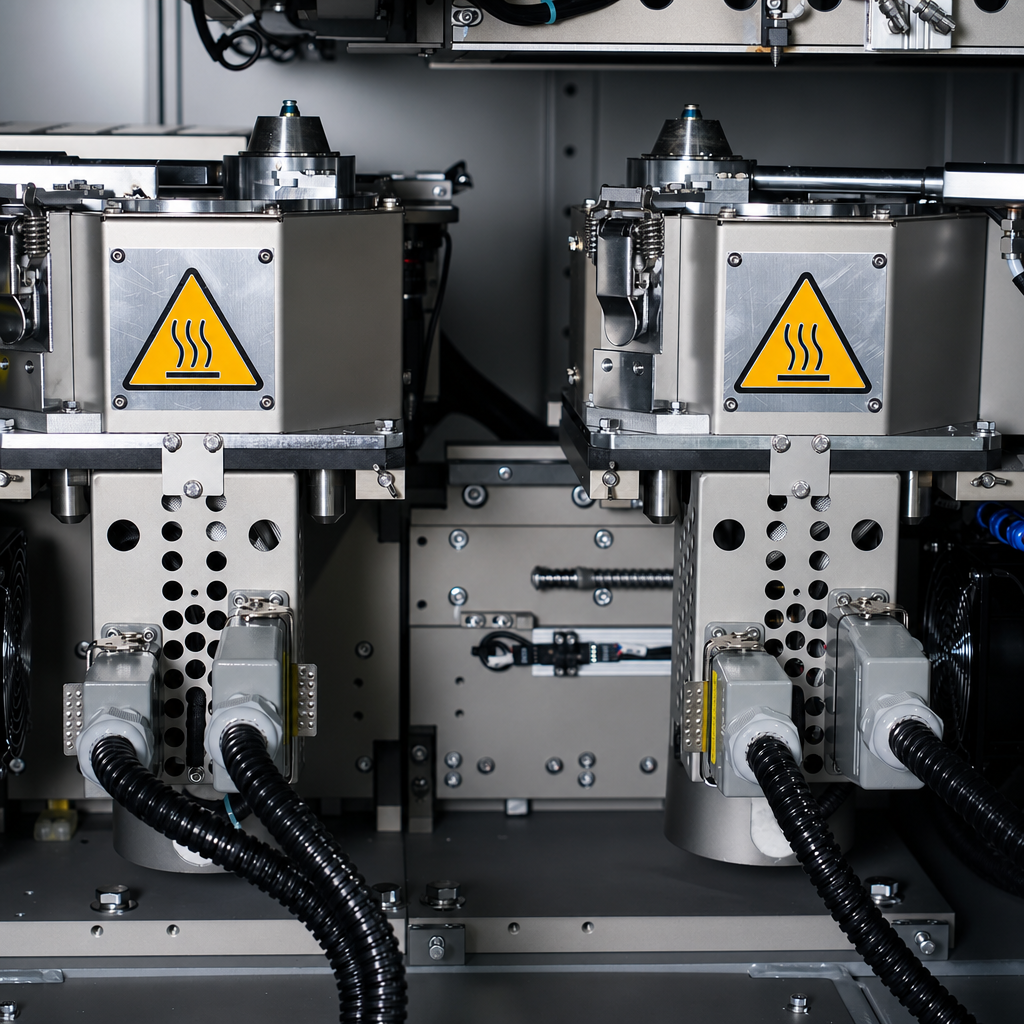

2 sets of electromagnetic selective solder pots (precise solder control)
2 sets of inline N₂ heaters (nitrogen atmosphere optimization)
Auto wave height calibration(self-adjusting solder wave consistency)
Fiducial mark recognition(PCB high precision positioning)
Live monitoring camera (real-time process monitoring)
Windows 11-based English software (user-friendly interface)
- Operating power / Max. power
- 6KW/21KW
- Machine dimensions
- L1402xW1660xH1521mm
- Power supply
- 3-phase 380 V, 50 Hz; optional 3-phase 220 V, 50 Hz
- Air supply
- 3-5 bar
- Exhausting required
- 400 m³/h
- PC interface
- English, Windows 11
- Program method
- Sasinno “Smart Soldering” software; draw paths and dots
- Camera
- Standard equipment for fiducial-mark and board scanning
- Motion control
- All servo motors
- Flux nozzle type
- Drop jet fluxer
- Fluxer cleaning
- Auto clean
- Pump type
- Electro-magnetic pump
- Wave height calibration
- Auto
- Soldering live on camera
- Standard included
- N₂ heater
- Standard included
- Required N₂ purity
- >99.99%
