Inline Selective Soldering Machine
Ultra-i2/52
High volume + longer preheat
The Ultra-i2/52 is an inline selective wave soldering machine for PCBs with through-hole components, supports PCB board sizes up to a maximum of 600x600 mm.
Features
1 set of drop-jet fluxer (high-precision flux application)
2 section preheating zone (top convection, bottom IR)
IR preheating above soldering section

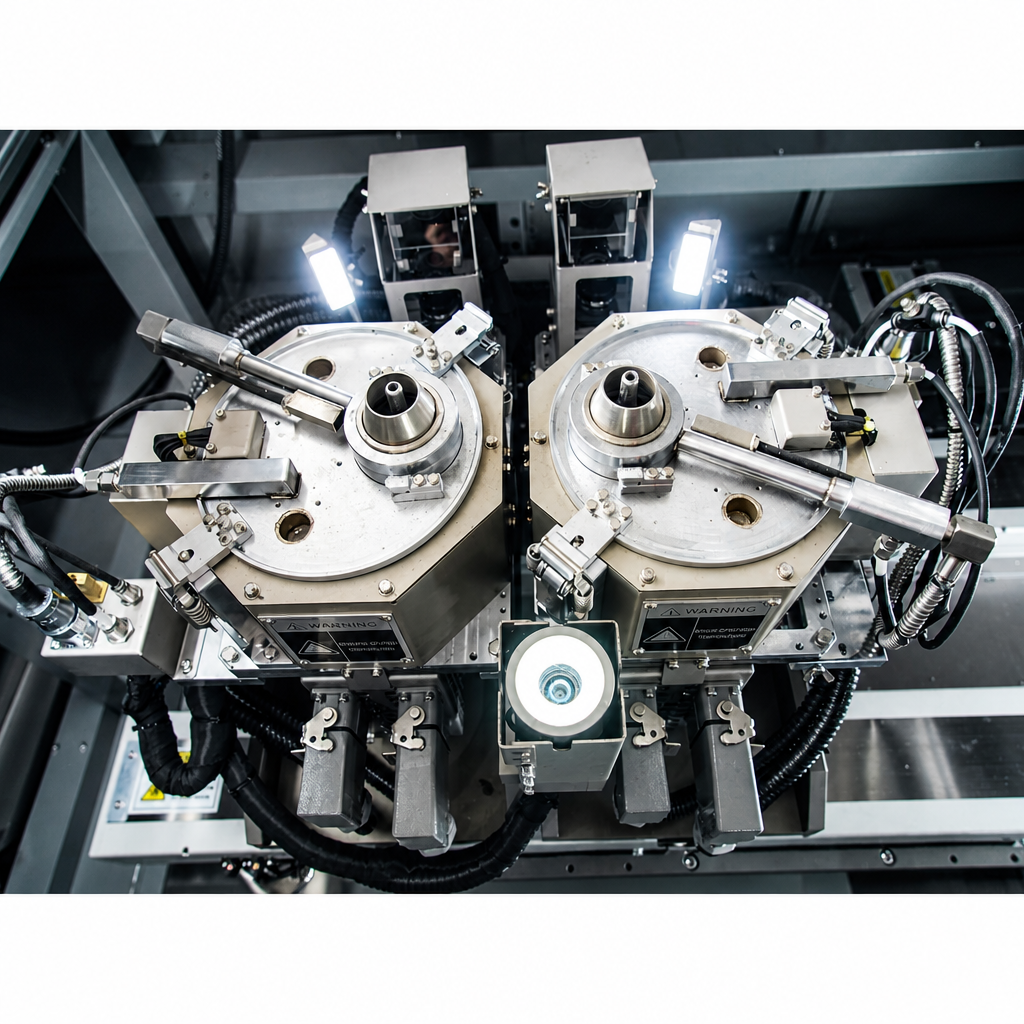

2 sets of electromagnetic pumps with 2 Z axes; the X-axis distance between the two pots is adjustable by software
2 sets of inline N₂ heaters (optimized nitrogen atmosphere)
Auto wave height calibration(self-adjusting solder wave consistency)
Fiducial mark recognition(PCB high precision positioning)
Live camera (real-time process monitoring)
Windows 11-based English software(user-friendly interface)
- Operating power / Max. power
- 6KW/54KW
- Machine dimensions
- L4404xW1921xH1477mm
- Power supply
- Power supply: 3-phase, 380 V, 50 Hz; optional 3-phase, 220 V
- Air supply
- 3-5 bar
- Exhausting required
- 800 m³/h
- PC interface
- English Windows 11
- Program method
- Sasinno "Smart Soldering" software; path and dot programming
- Camera
- Standard, equipped for fiducial and board scanning
- Motion control
- All servo motors
- Flux nozzle type
- Drop jet fluxer
- Fluxer cleaning
- Auto clean
- Pump type
- Electro-magnetic pump
- Wave height calibration
- Auto
- Soldering live on camera
- Standard included
- N₂ heater
- Standard included
- Required N₂ purity
- >99.99%
