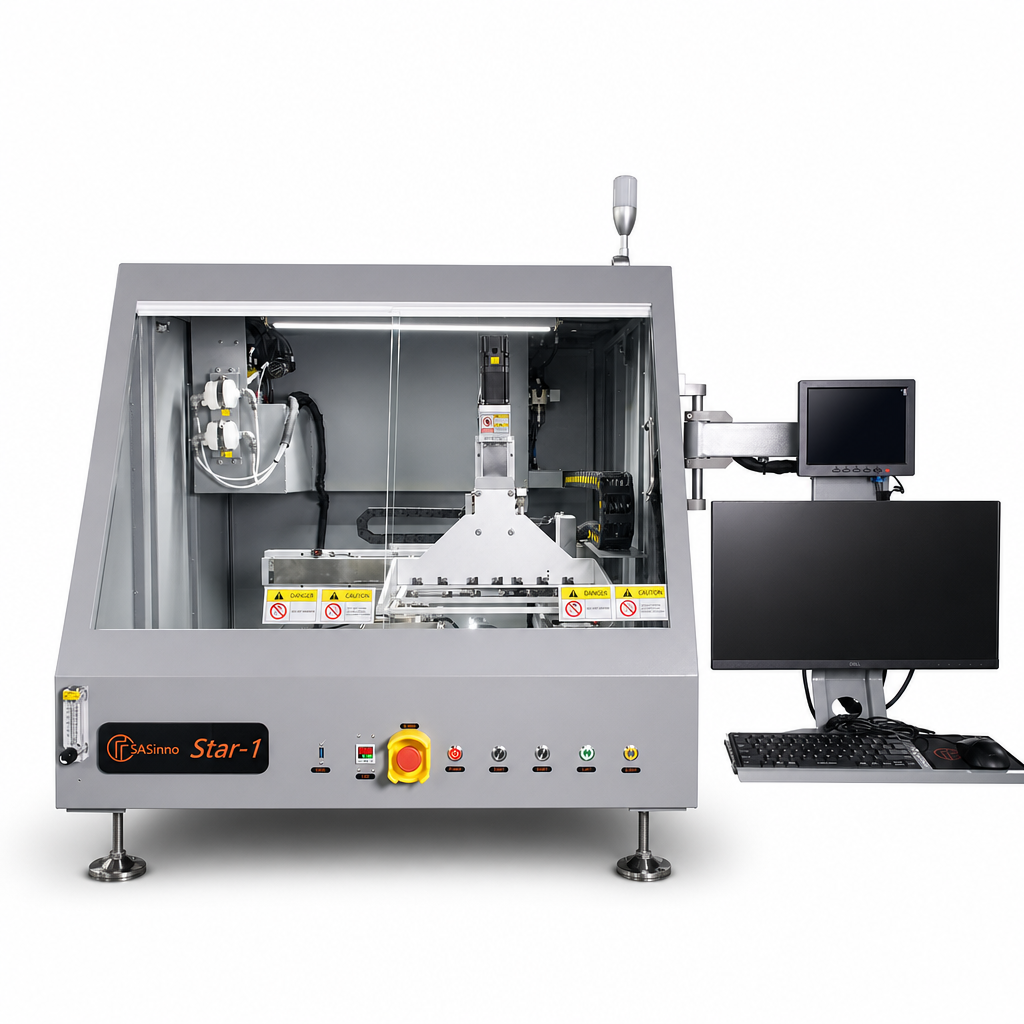

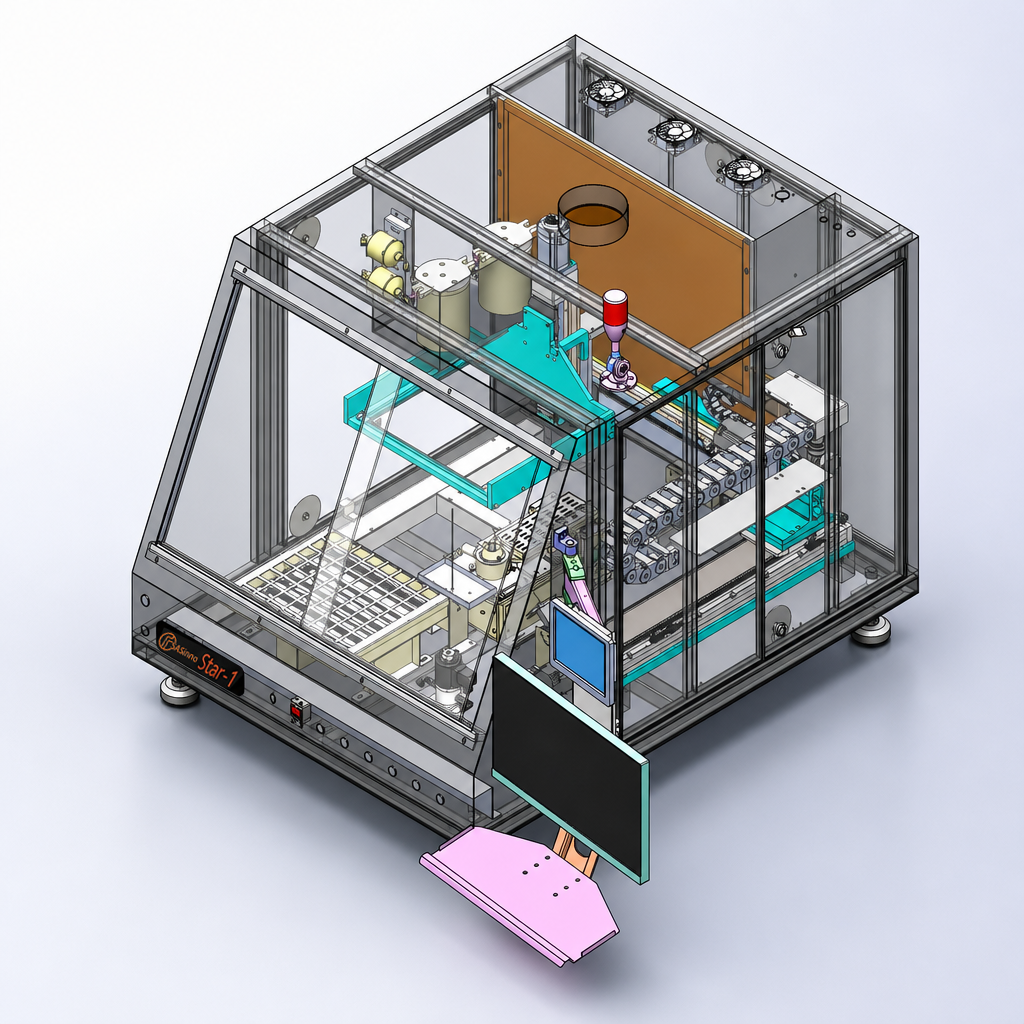

Tabletop Selective Soldering Machine
Star-1
Entry tabletop / small PCB
The Star-1 is an tabletop selective wave soldering machine for PCBs with through-hole components, supports PCB board sizes up to a maximum of 350x300 mm.
Features
Drop jet fluxer 1set(high-precision flux application)
Top and bottom preheating modules(enough thermal preparation)
Mechanical pump solder pot 1set(precise solder control)
Inline N2 heater 1set (nitrogen atmosphere optimization)
Auto wave height calibration(self-adjusting solder wave consistency)
Live-on camera(real-time process monitoring)
Windows 11-based English software(user-friendly interface)
- Operating power/Max power
- 3KW/6KW
- Power supply
- 1ph 220V 50HZ
- Machine dimension
- L1003xW1303xH918mm
- Air supply
- 3-5 bars
- Exhausting required
- 400M3/h
- PC interface
- English Windows 11
- Program method
- by Sasinno "Smart soldering" software, draw path & dot
- Motion control
- all servo motors
- Flux Nozzle type
- drop jet fluxer
- Fluxer cleaning
- Auto clean
- Pump type
- Mechanical pump
- Wave height calibration
- Auto
- Soldering live on camera
- Standard include
- N2 heater
- Standard include
- Required N2 Purity
- >99.99%
