Compact Inline Selective Soldering Machine

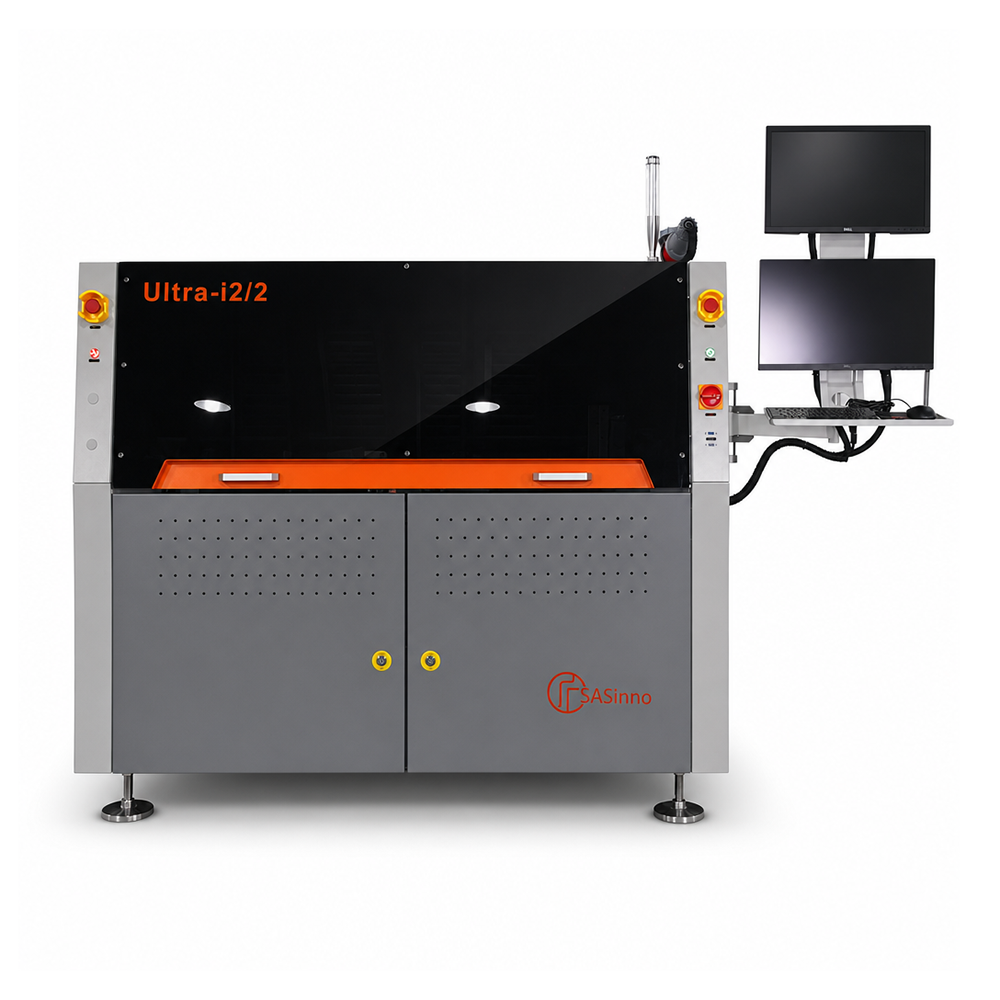

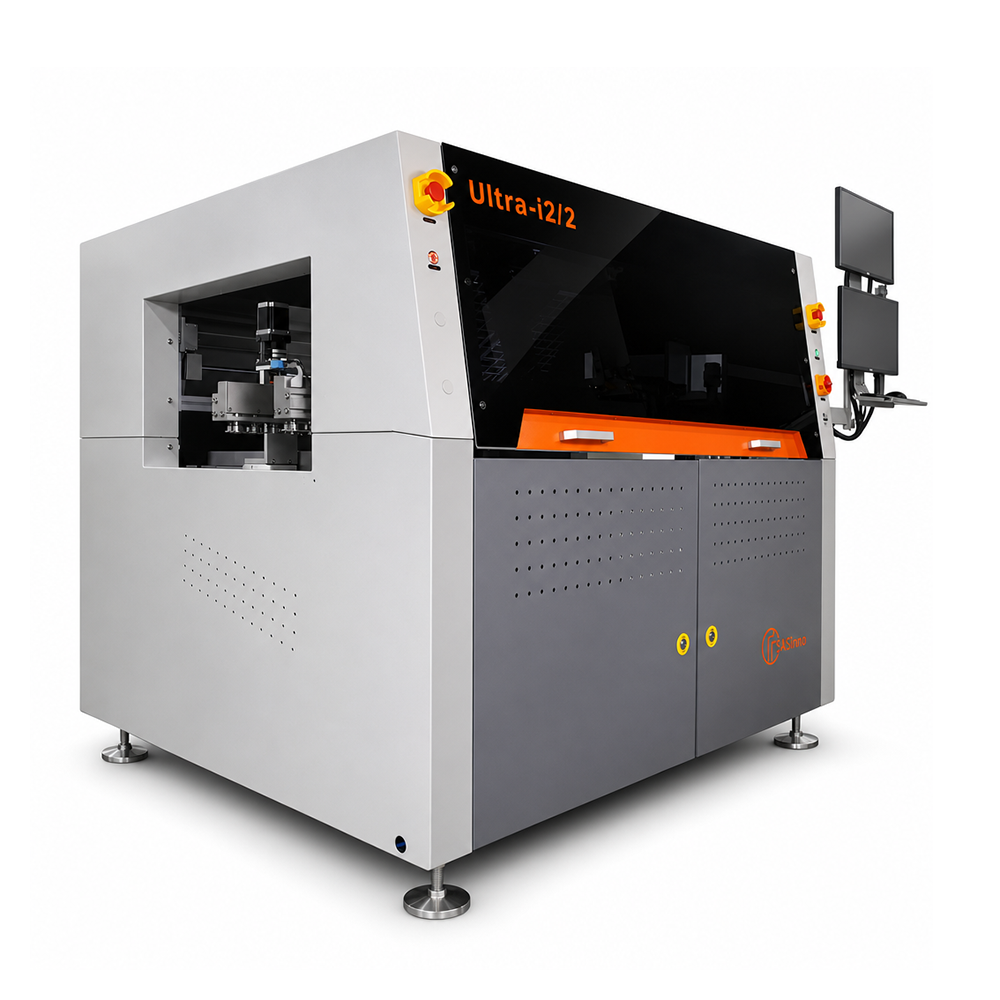

Ultra-i2/2
Compact inline production model
Ultra-i2/2 is a compact inline selective soldering system for through-hole PCBs, accepting boards up to 600×600 mm.
Features
2 sets of drop-jet fluxers (high-precision flux application).
Top and bottom IR preheat.

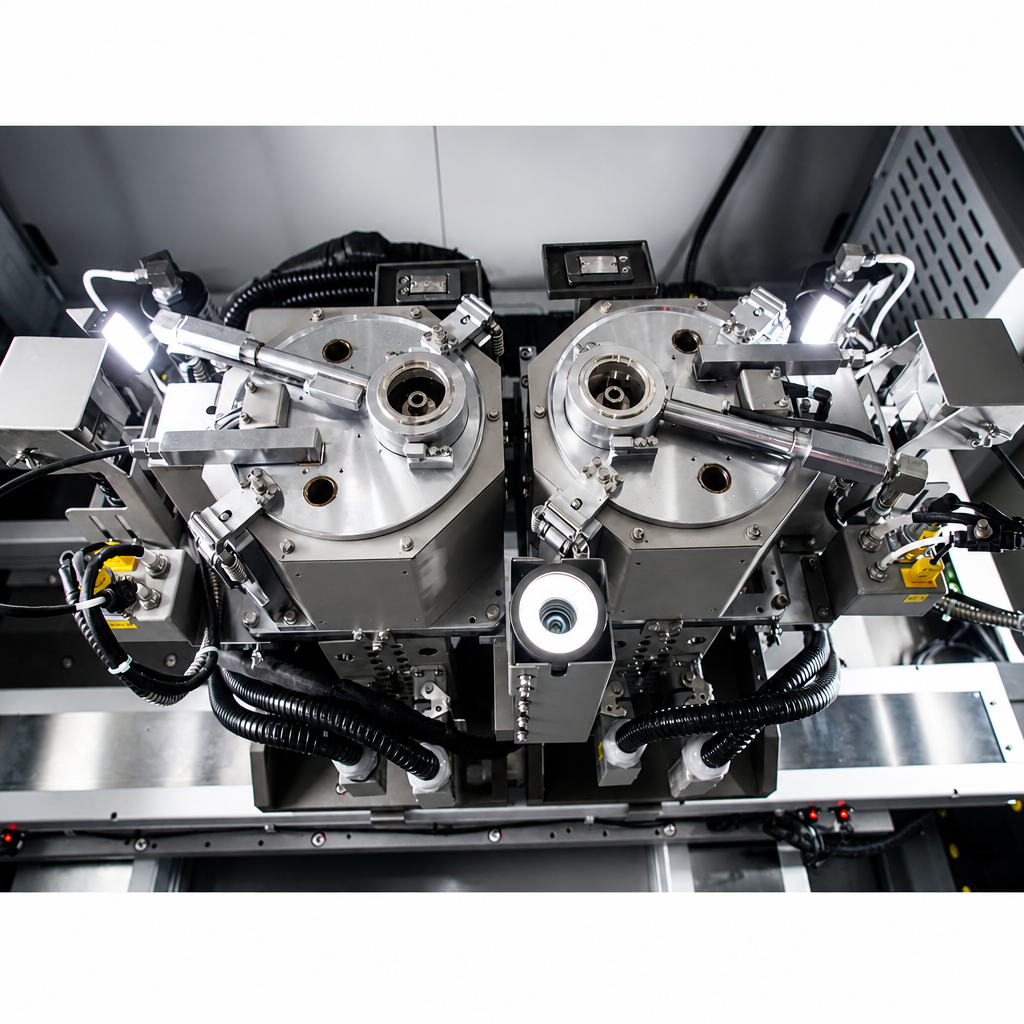

2 sets of electromagnetic pumps with 2 Z axes; the X-distance between the two pots is adjustable by software.
2 sets of inline N₂ heaters (nitrogen atmosphere optimization).
Automatic wave-height calibration (consistent solder-wave height).
Fiducial mark recognition (high-precision PCB positioning).
Live monitoring camera (real-time process monitoring).
Windows 11-based English software(user-friendly interface).
- Operating power / Max. power
- 6 kW / 26 kW
- Machine dimensions
- L 1854 × W 1926 × H 1477 mm
- Power supply
- 3-phase 380 V, 50 Hz; optional 3-phase 220 V
- Air supply
- 3-5 bar
- Exhausting required
- 800 m³/h
- PC interface
- English Windows 11
- Program method
- Sasinno “Smart Soldering” software; draw paths and dots
- Camera
- Standard equipment for fiducial-mark and board scanning
- Motion control
- All servo motors
- Flux nozzle type
- Drop jet fluxer
- Fluxer cleaning
- Automatic cleaning
- Pump type
- Electro-magnetic pump
- Wave height calibration
- Auto
- Soldering live on camera
- Standard included
- N₂ heater
- Standard included
- Required N₂ purity
- >99.99%
