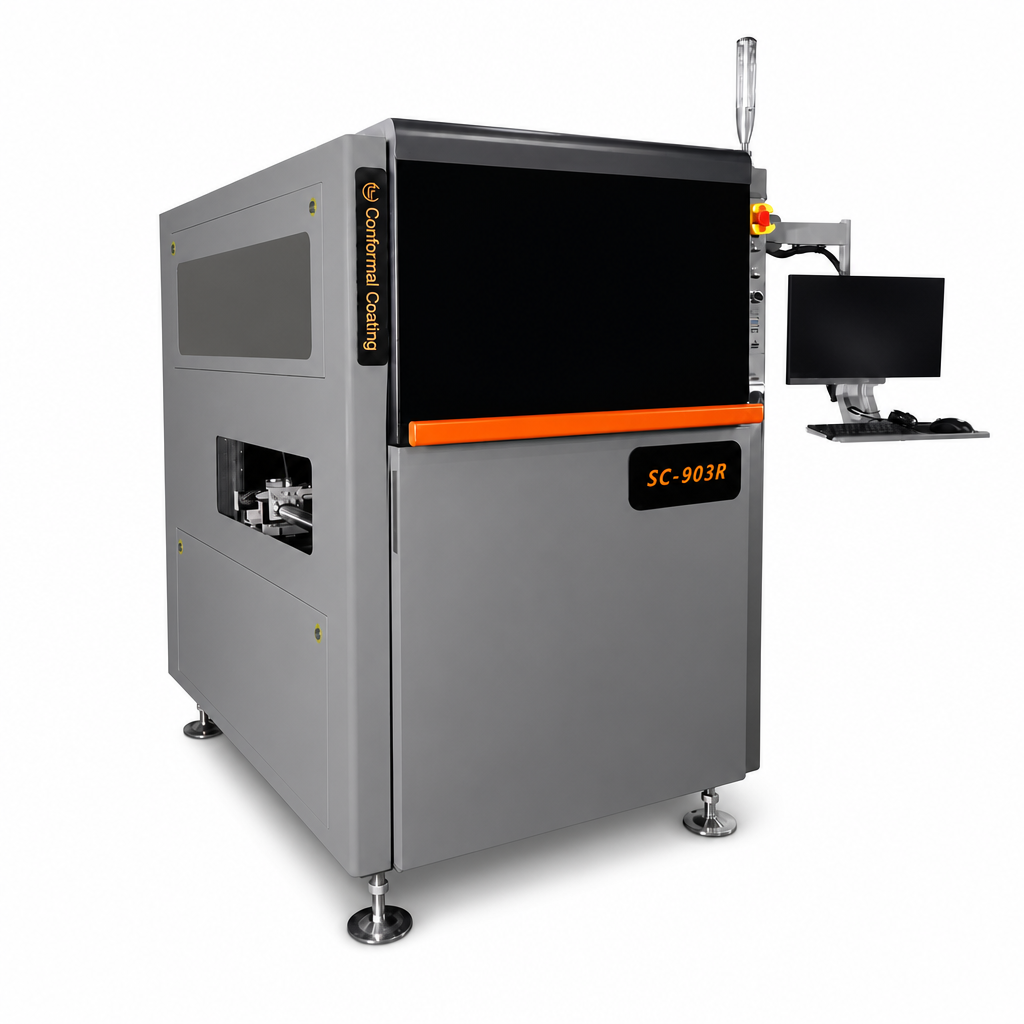

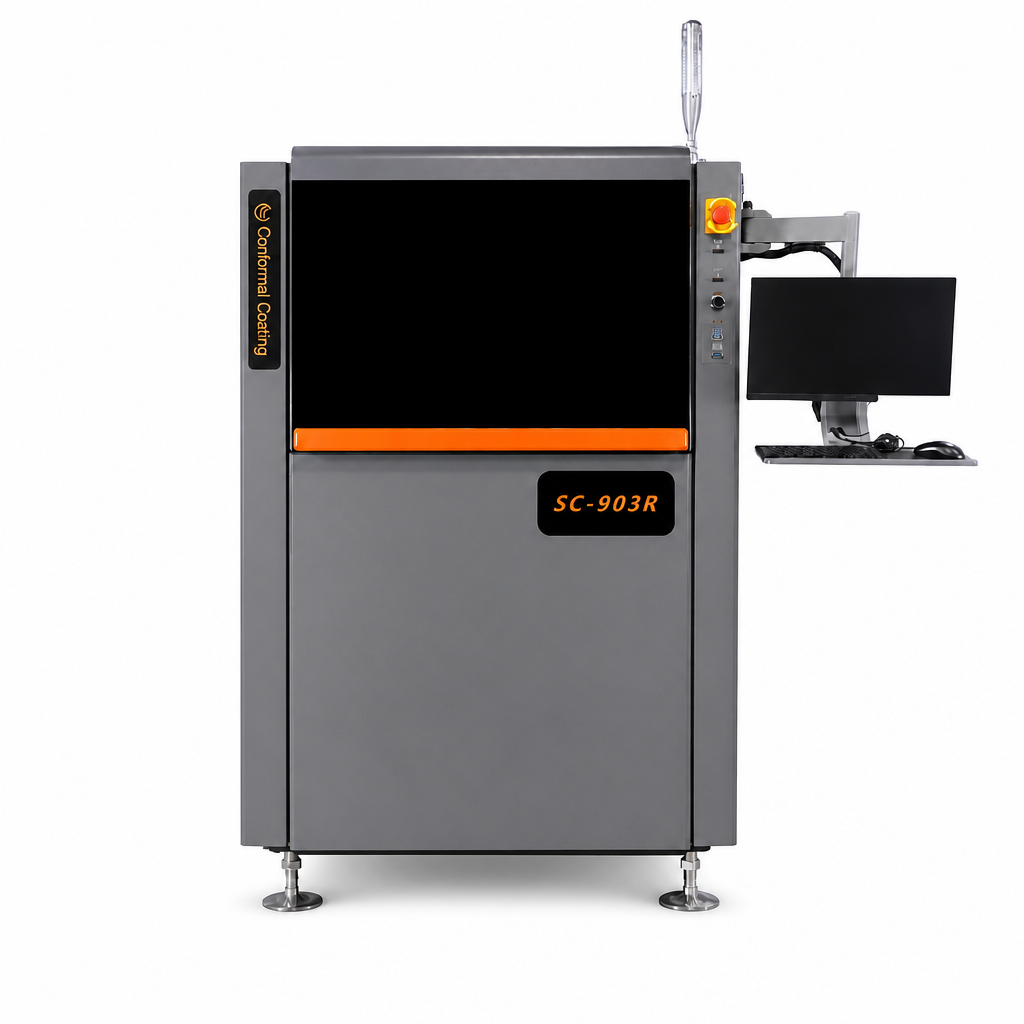

Inline Conformal Coating Machine
SC-903R
Most flexible model for complex coating
X/Y/Z/R high precision servo control system , various valves , CCD system for programming and mark recognition
Features
Robust welded frame and high-precision servo drive.
±180° rotating and tilting valve for dead-angle-free coating.
CCD vision programming and mark recognition.
Optional glue weighing, vacuum mixing, and barcode scanning.
Professional windows-based coating software.
Customized turnkey coating lines available.
- Item
- Specification
- Max. Moving Speed
- 500mm/s
- Valve Options
- Narrow spray valve, needle valve, film coating valve, wide spray valve
- Max PCB Component Height
- Top:100mm; Bottom:40mm
- Programming
- Manual teaching by valve or CCD, DXF file loading, picture programming
- Repeatable Accuracy
- ±0.05mm
- Conveyor
- 2–5 m/min; motorized width adjustable from 70–500 mm; height 900 ± 30 mm; left-to-right
- PCB Clamper
- Standard configuration
- Power Supply
- 1-phase, AC 220 V, 50–60 Hz
- Air Requirement
- 0.4–0.6 MPa, 20 L/min
- Total Power
- 3.8 kW
- Weight
- 1,100 kg
