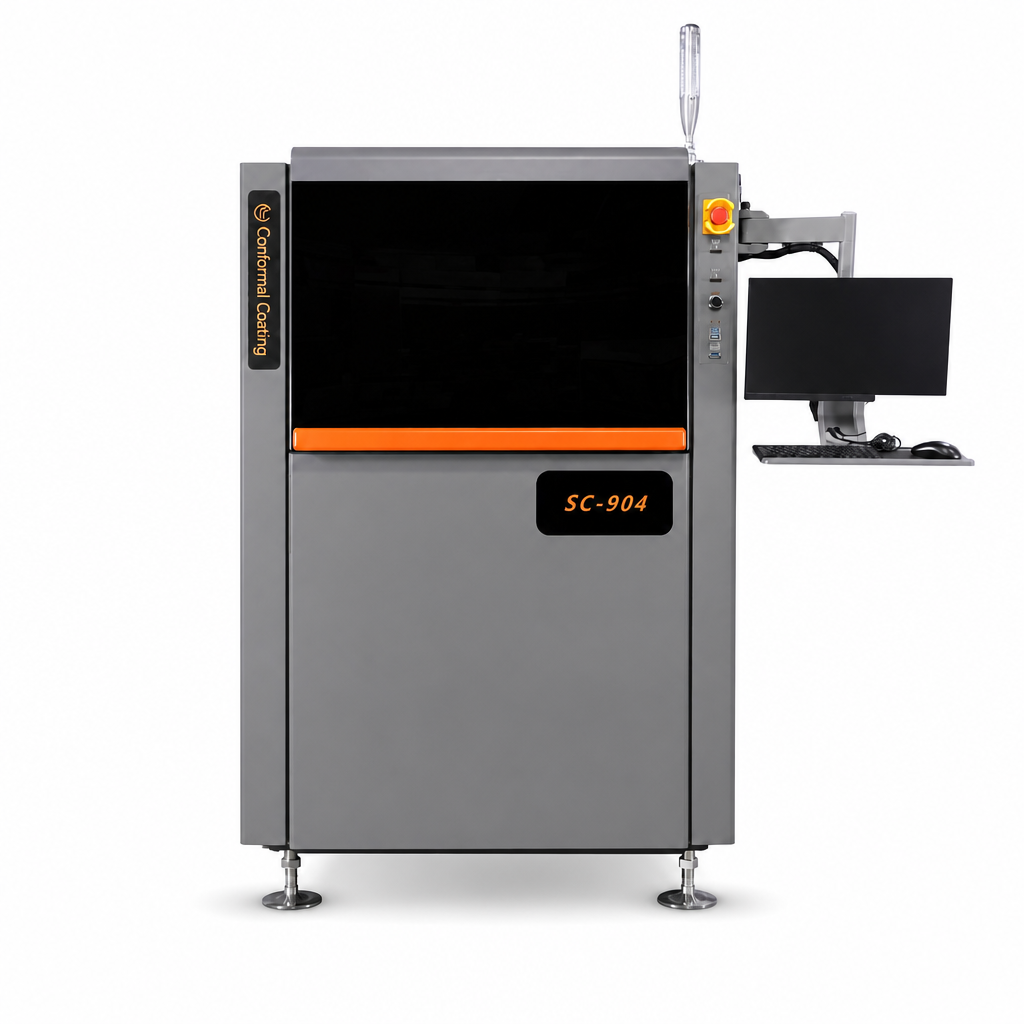

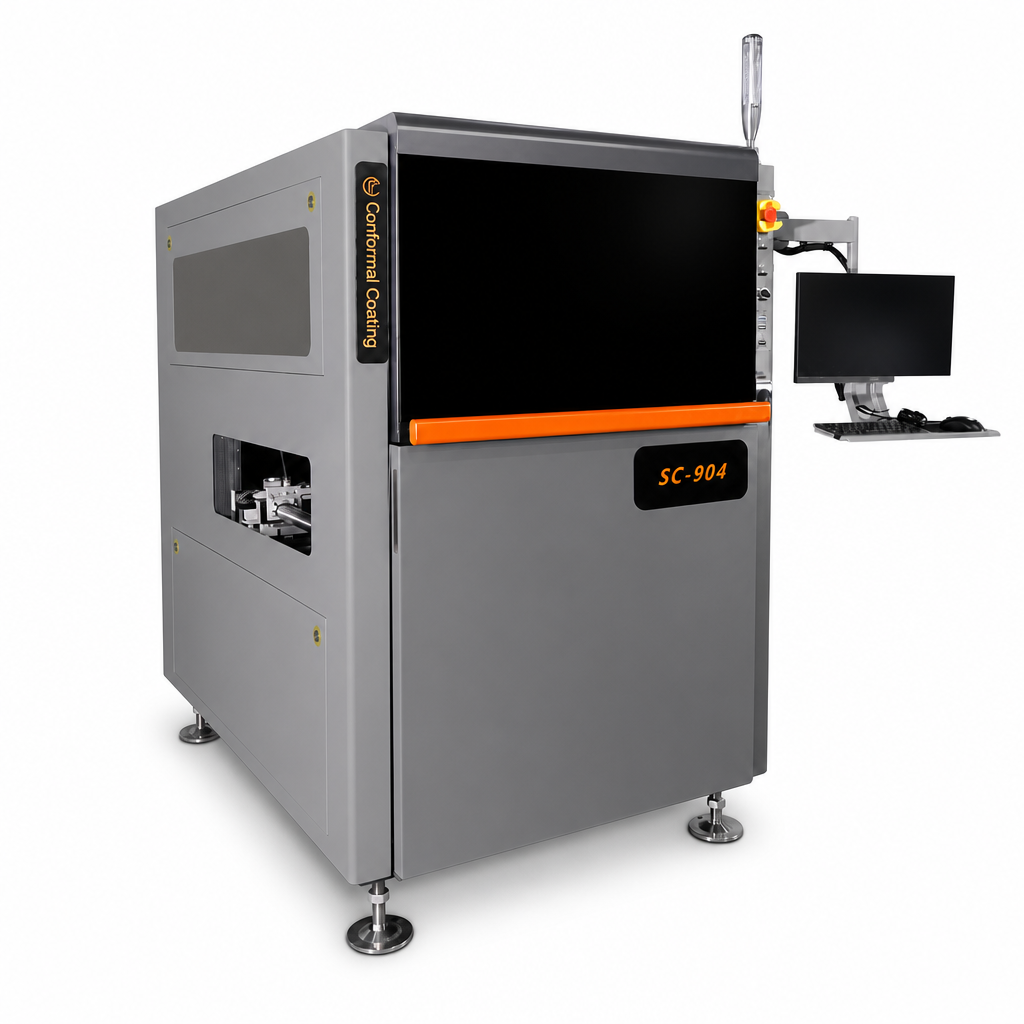

Inline Conformal Coating Machine
SC-904
Max 4 valves
X/Y/Z high-precision servo system, multiple valves and CCD for programming & mark recognition, selective conformal coating.
Features
Machine adopt high strength welding frame , All axes adopt servo motor and ball screw to ensure high speed and stable running .
A variety of high precision valves can meet different coating requirements.
CCD system can be used for programming and mark recognition
Optional : Glue weighing system can avoid missing coating .
Optional : Glue Tank mixing with vacuum
Optional : Barcode reading system which can automatically call program according to barcode for double side coating line .
Professional coating software easily meet various requirement of coating prcoess .
Industrial PC ,windows operation system , full english interface ,very easy to use.
Customized whole coating line is available .
High-precision valve with ±180° rotation & tilt, coating without dead angles
- Max Moving Speed
- Max 500mm/s
- Standard Valve
- 2pcs Narrow spray valve,2pcs Needle valve
- Optional valve
- Film coating valve/ Wide spray valve
- Max PCB Component Height
- Top:100mm; Bottom:40mm
- Programming
- Manual teaching by valve or CCD， load .dxf file ，picture programming
- Repeatable Accuracy
- +/- 0.05mm
- Conveyor Height
- 900mm±30mm
- Conveyor direction
- left to right only
- Conveyor Speed
- 2~5M/min
- Conveyor width adjustment
- Motorized ,70 to 500mm adjustable
- Material Tank
- 10L
- Cleaning solvent tank
- 3L
- PCB clamper
- Standard configuration
- Voltage
- 1Ph;AC220V;50~60Hz
- Air Requirement
- 0.4-0.6Mpa , 20l/min
- Exhaust flow rate
- 500m3/hour
- Exhaust port dimension
- Outer Diameter 145 mm
- Overall Size W*D*H
- 1200mm*1750mm*1796mm(not including display bracket and alarm light)
- Total Power
- 3.8 KW
- Weight
- 1100KG
