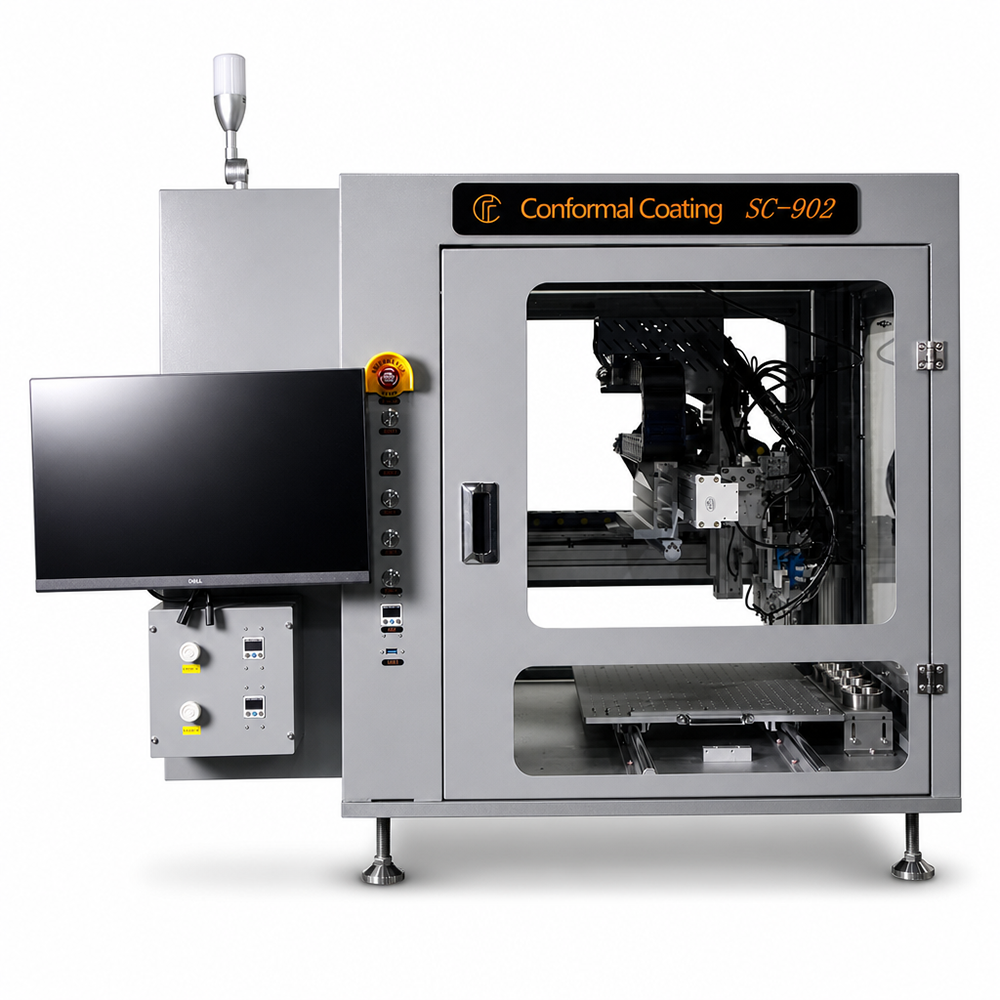

Benchtop Conformal Coating Machine
SC-902
Cost-effective entry model
Entry model - Best value for standard coating needs
Features
Optional Glue Weighing System for Reliable Coating.
Optional Vacuum Glue-Tank Mixing.
Professional Coating Software for Flexible Processes.
Windows Industrial PC with Full English Interface.
Dual Platforms Supporting PCBs up to 400 × 300 mm per Platform.
- Exhaust flow rate
- 500 m³/h
- Number of platforms
- 2 platforms
- Exhaust port dimension
- Outer Diameter 145 mm
- Max. work movement speed
- 500 mm/s
- Air requirement
- 0.4–0.6 MPa, 20 L/min
- Standard valve
- Narrow spray valve, needle valve
- Optional valve
- Film coating valve / wide spray valve
- Valve tilting device
- Narrow spray valve and needle valve with a tilt angle of 35°
- Programming
- Manual teaching by valve or CCD, DXF file loading, picture programming
- Repeatability
- ±0.05 mm
- Material tank
- 10 L
- Cleaning solvent tank
- 3 L
- Power supply
- AC 220 V, 50–60 Hz
