Inline Selective Soldering Machine
Ultra-i4/41
High throughput with 4 pumps
The Ultra-i4/41 is an inline selective wave soldering machine for PCBs with through-hole components, supports PCB board sizes up to a maximum of 600x600 mm.
Features
Drop jet fluxer 1set(high-precision flux application)
1 section preheating zone (top convection, bottom IR)
IR preheating above soldering section

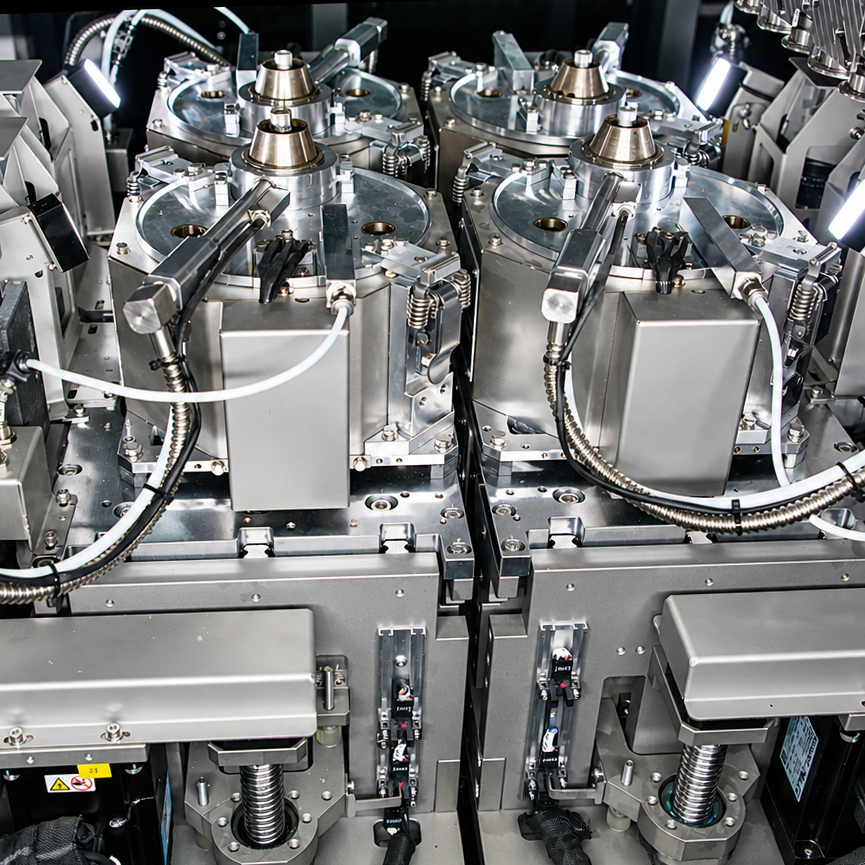

4 sets electro-magnetic pump with 4 Z axis, 4 X axis and 2 Y axis adjustable by software.
Inline N2 heater 4sets (nitrogen atmosphere optimization)
Auto wave height calibration(self-adjusting solder wave consistency)
Fiducial mark recognition(PCB high precision positioning)
Live-on camera(real-time process monitoring)
Windows 11-based English software(user-friendly interface)
- Operating power/Max power
- 6KW/46KW
- Machine dimension
- L3804xW2050xH1477mm
- Power supply
- 3PH 380V 50HZ Optional with 3ph 220V
- Air supply
- 3-5 bars
- Exhausting required
- 800M3/h
- PC interface
- English Windows 11
- Program method
- by Sasinno "Smart soldering" software, draw path & dot
- Camera
- Standard equipped for fiducial & board scanning
- Motion control
- all servo motors
- Flux Nozzle type
- drop jet fluxer
- Fluxer cleaning
- Auto clean
- Pump type
- electro-magnetic pump
- Wave height calibration
- Auto
- Soldering live on camera
- Standard include
- N2 heater
- Standard include
- Required N2 Purity
- >99.99%
