Offline Selective Soldering Machine
Ultra-i1
Offline production upgrade

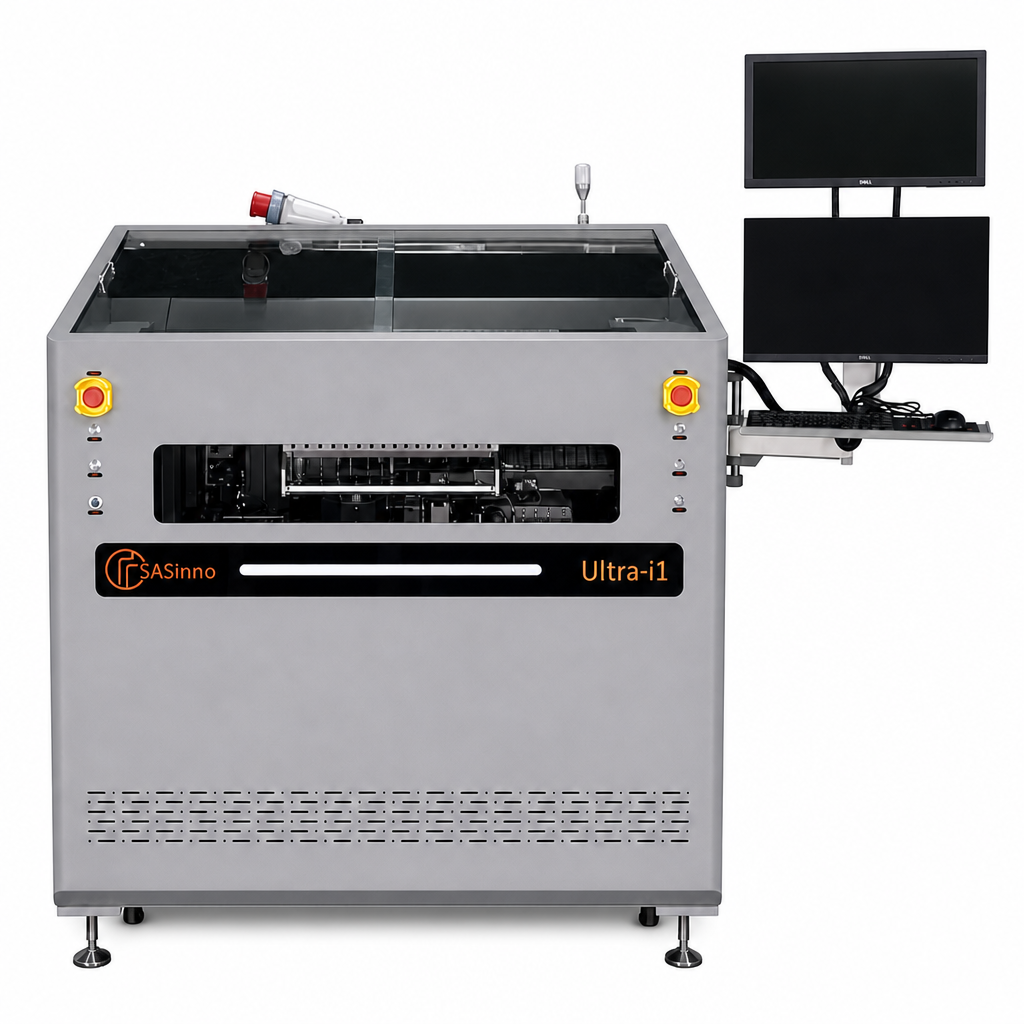

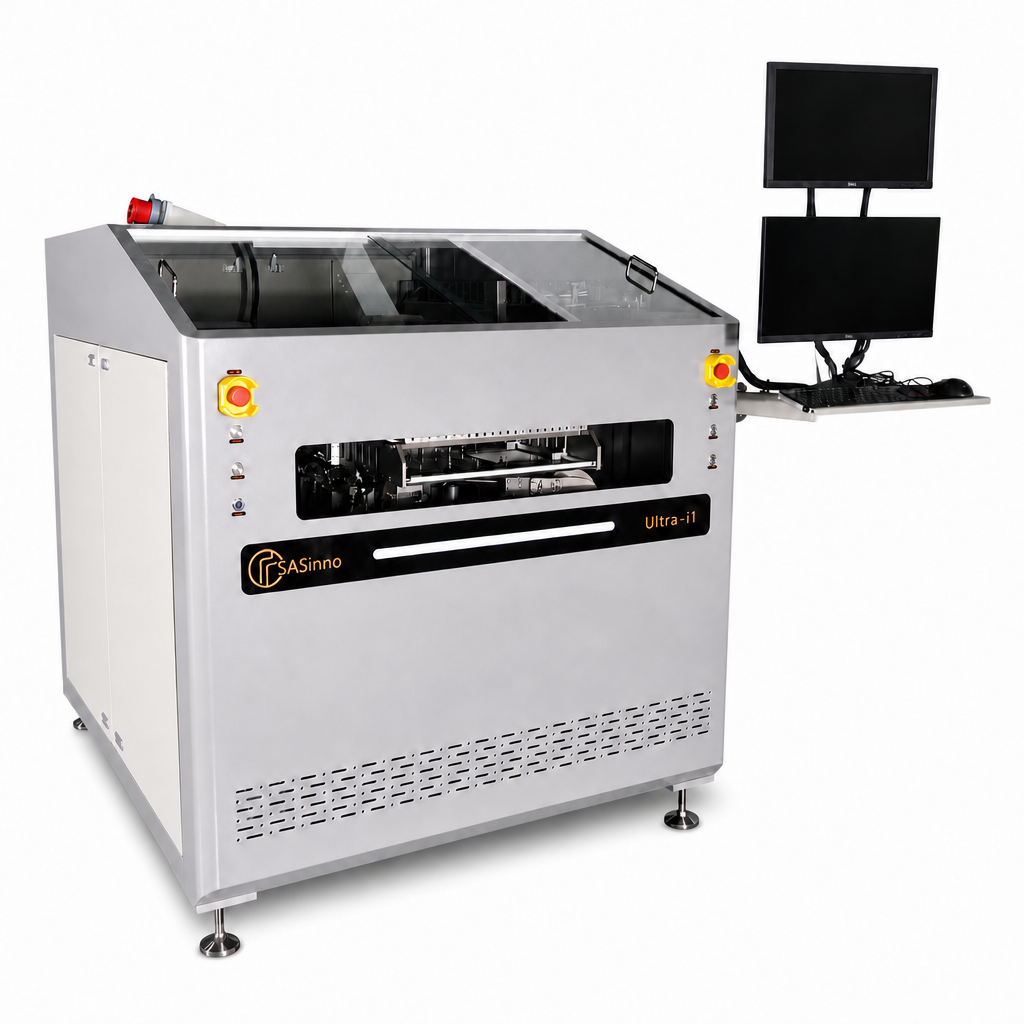

The Ultra-i1 is an offline selective wave soldering machine for PCBs with through-hole components, supports PCB board sizes up to a maximum of 460x510 mm.
Features
Drop jet fluxer 1set (high-precision flux application)
Top and bottom preheating modules (sufficient thermal preparation)

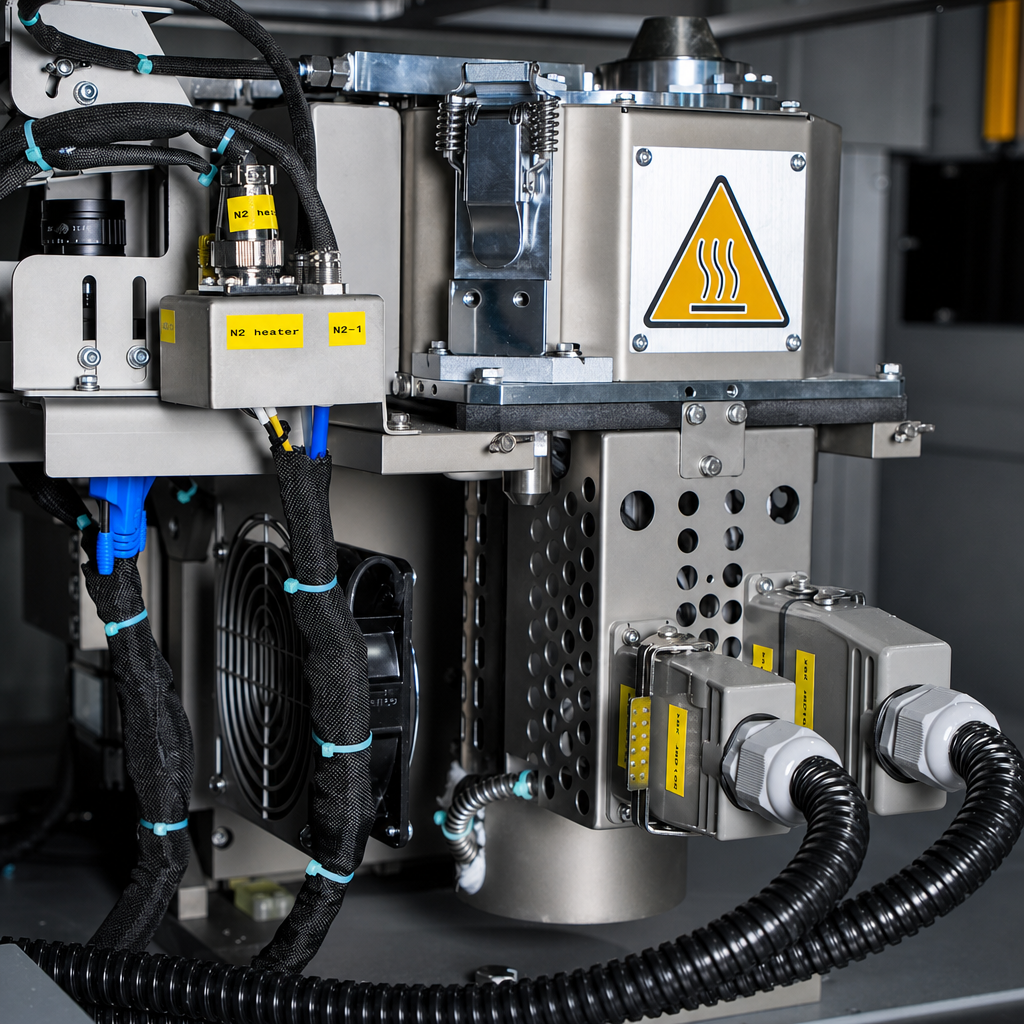

Electromagnetic selective solder pot 1set (precise solder control)
1 set of inline N₂ heater (nitrogen atmosphere optimization)
Auto wave height calibration (self-adjusting solder wave consistency)
Fiducial mark recognition (PCB high precision positioning)
Live-on camera (real-time process monitoring)
Windows 11-based English software (user-friendly interface)
- Operating power/Max. power
- 6KW/18KW
- Power supply
- 3PH 380V 50HZ Optional 3ph 220V 50HZ
- Machine dimension
- L1402xW1660xH1521mm
- Air supply
- 3-5 bar
- Exhausting required
- 400 m³/h
- PC interface
- English Windows 11
- Program method
- Sasinno "Smart Soldering" software: draw path & dot
- Camera
- Standard (fiducial & board scanning)
- Motion control
- All servo motors
- Flux nozzle type
- Drop jet fluxer
- Fluxer cleaning
- Auto clean
- Pump type
- Electro-magnetic pump
- Wave height calibration
- Auto
- Soldering live on camera
- Standard included
- N₂ heater
- Standard included
- Required N₂ purity
- >99.99%
