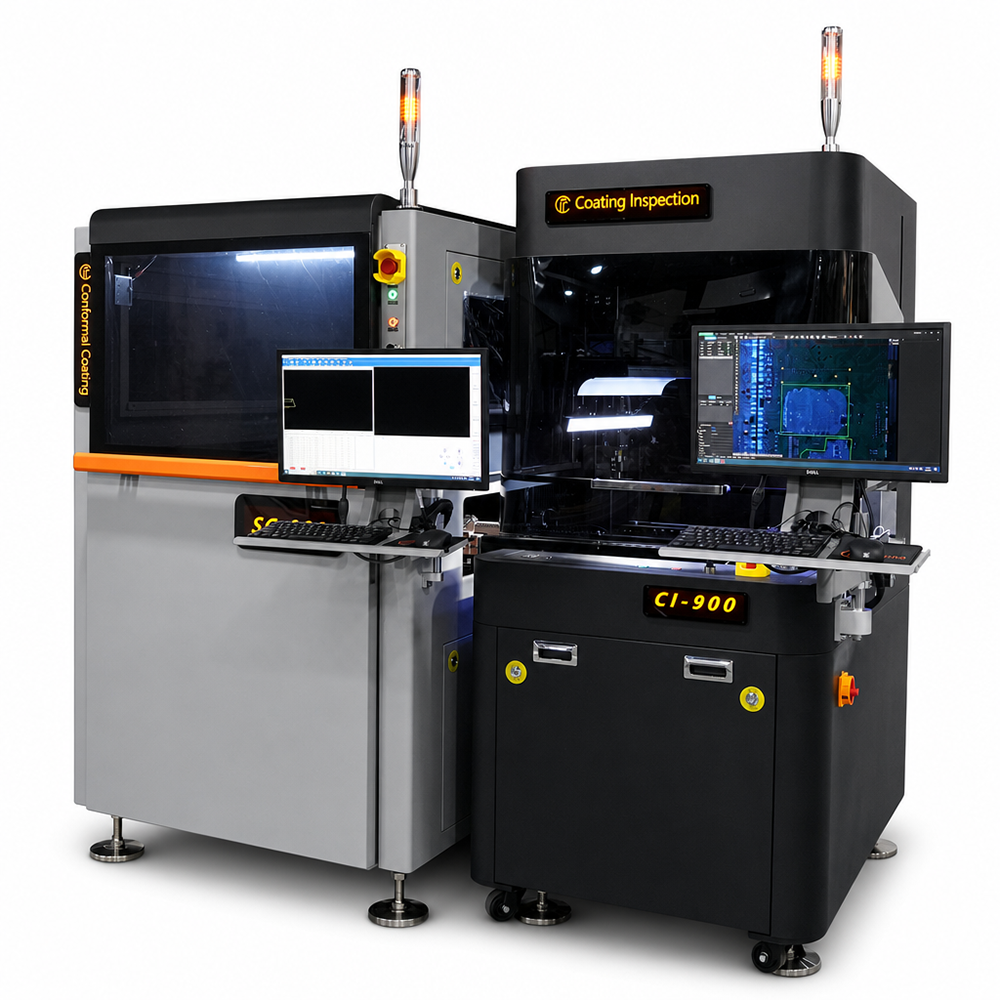

Coating Inspection System
CI-900
For UV coating quality inspection and defect detection
CI-900 is a Simple AOI equipment for UV coating glue inspection.Inspection type of coating： excessive, insufficient, splashing.
Features
High-stability structure ensures stable machine operation.
Equipped with a 20-megapixel CCD and UV + W light source to ensure inspection accuracy.
Coating defect types: excessive coating, insufficient coating, and splashing.
CI-900 adopts color extraction and image comparison for simplified programming.
Equipped with data statistics software for easy searching and exporting of detailed statistical data.

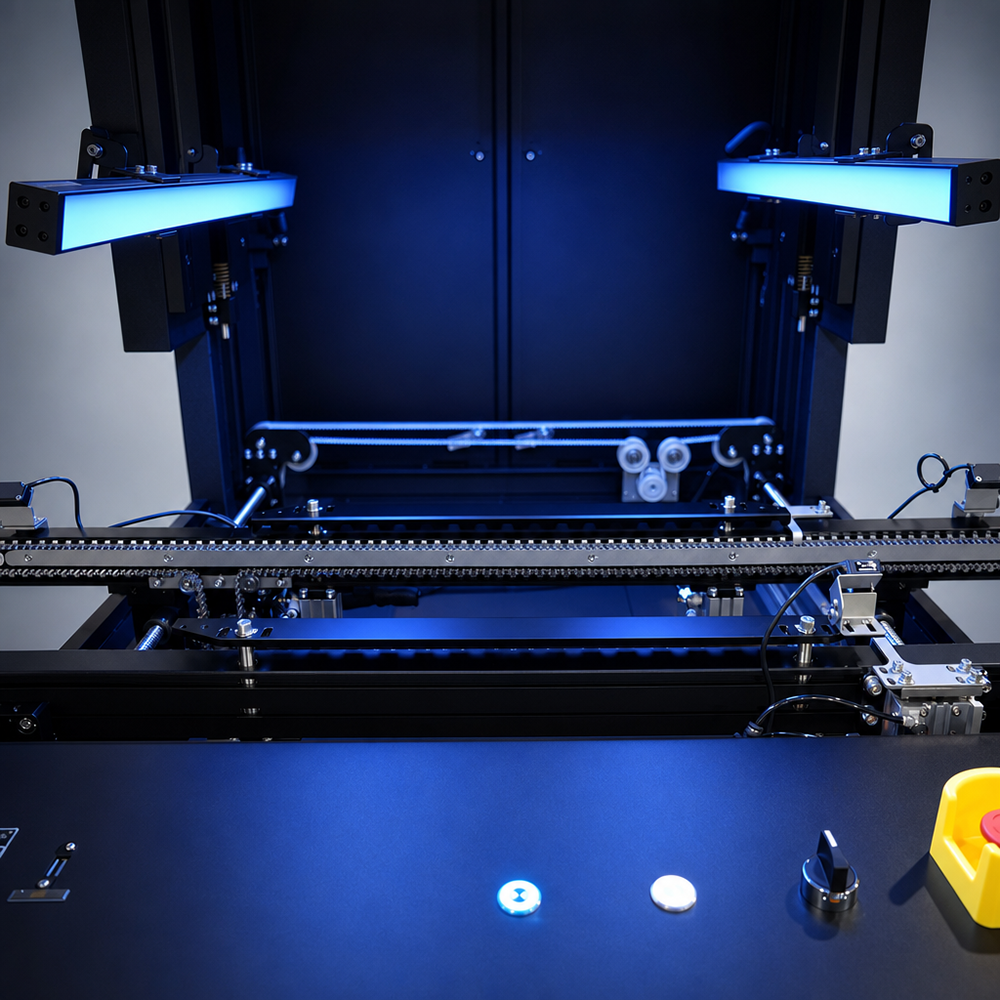

The guide rail automatically adjusts to fit different PCB sizes.
- Adjustment
- Automatic
- Guide rail height
- 920 ± 20 mm
- Flow direction
- L→R
- PC configuration
- Intel Core i5 CPU; 32 GB DDR memory; SSD + 1 TB mechanical hard disk; 1000 Mbps wired network card
- Communication
- SMEMA
- Power supply
- 1-phase, 220 V, 50/60 Hz, 1 kW
- Air supply
- 0.4–0.6 MPa
- Machine size
- W 1056 × D 1164 × H 1880 mm, excluding display and light tower
- Weight
- Approx. 300 kg
- Operation system
- Windows 10
