iWA Series Wave Solder Machine

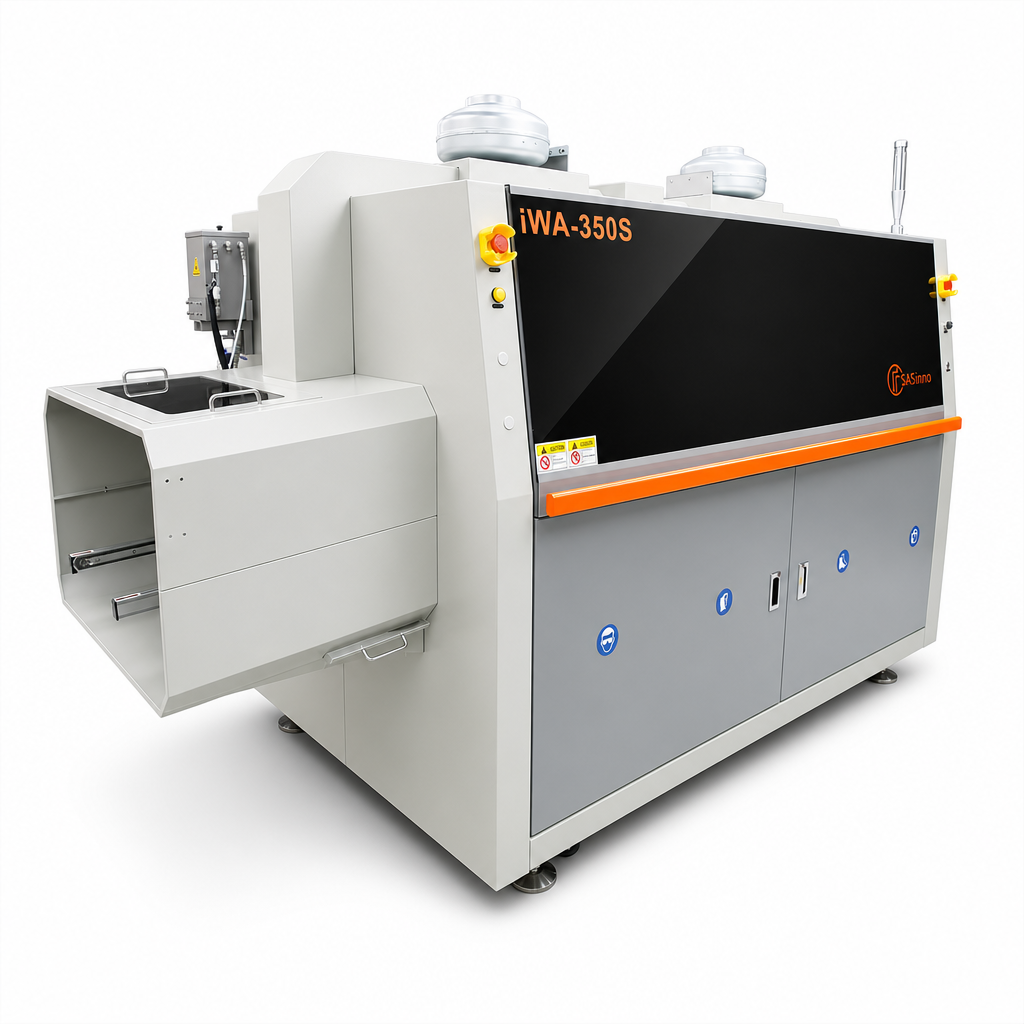

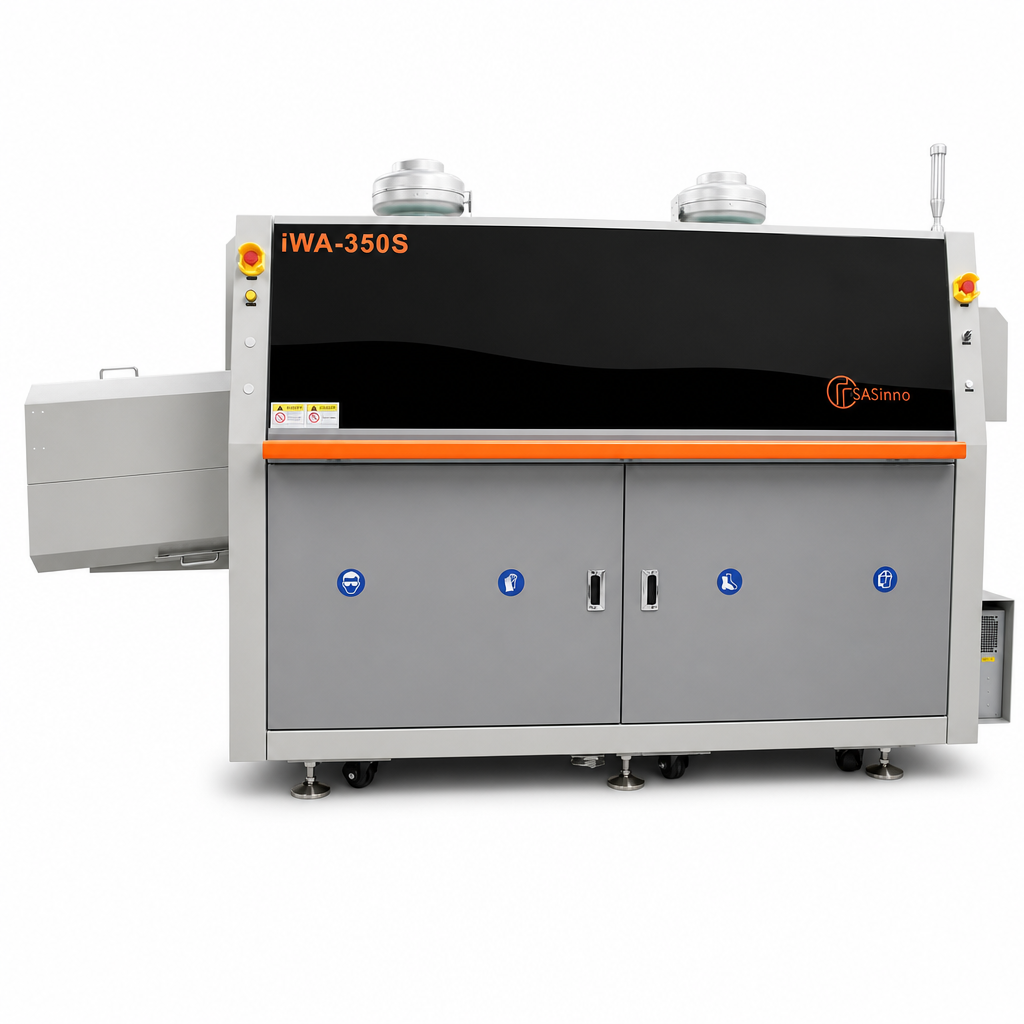

iWA-350S
Compact production & space-saving lines
The iWA-350s is a lead-free wave soldering machine for mass production of PCBs with through-hole plug-in components.Supports Max PCB width 350mm.
Features
New industrial appearance design enhances the machine’s aesthetics.
PC + PLC control system ensures stable, safe and efficient operation with easy usability.
Simple software interface, fully English, for effortless operation.
One-week timer enables automatic on/off to pre-melt solder before work starts.
Specialized guide rail with strong support reduces deformation.
Servo-driven sprayer allows adjustable speed and spraying width via software.
Non-stop selective flux spraying: use board/carrier images as background to set nozzle on/off time in motion path, saving flux and reducing waste.
- Running Power /General Power
- 6 kW / 18 kW
- Power Supply
- 3-phase 380 V or 3-phase 220 V
- Machine Dimension
- 2668 (L) × 1400 (W) × 1590 (H) mm
- Control
- PC + Windows 11 (English interface)
- Conveyor
- 6° Ti-finger conveyor
- Fluxer Type
- Spray
- Fluxer Clean
- Manual; optional automatic cleaning
- Spray Flux Path
- Selective
- Bottom Preheating Type
- Hot air convection
- Solder Bar Auto Feed
- Option
- N₂ Protection
- Optional with direct N₂ connection
- N₂ Inline Heating
- Option
