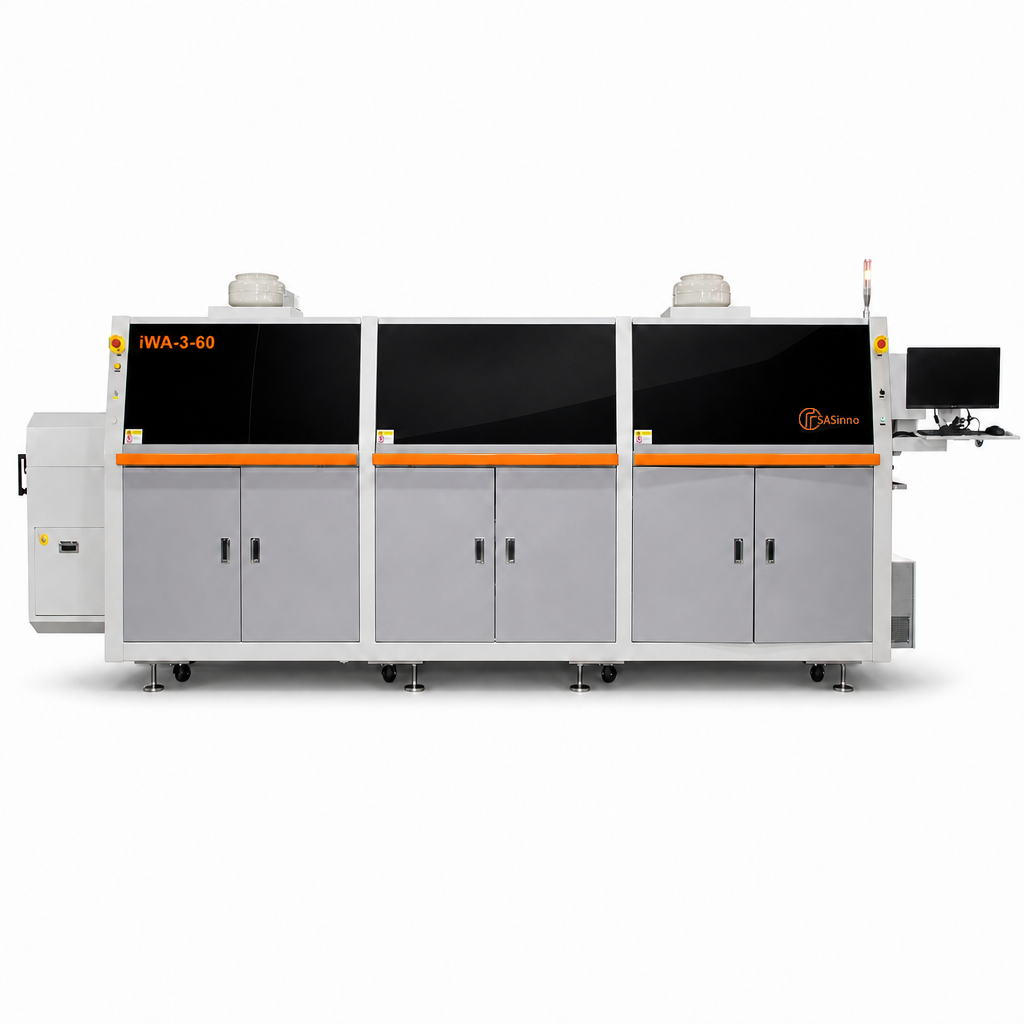

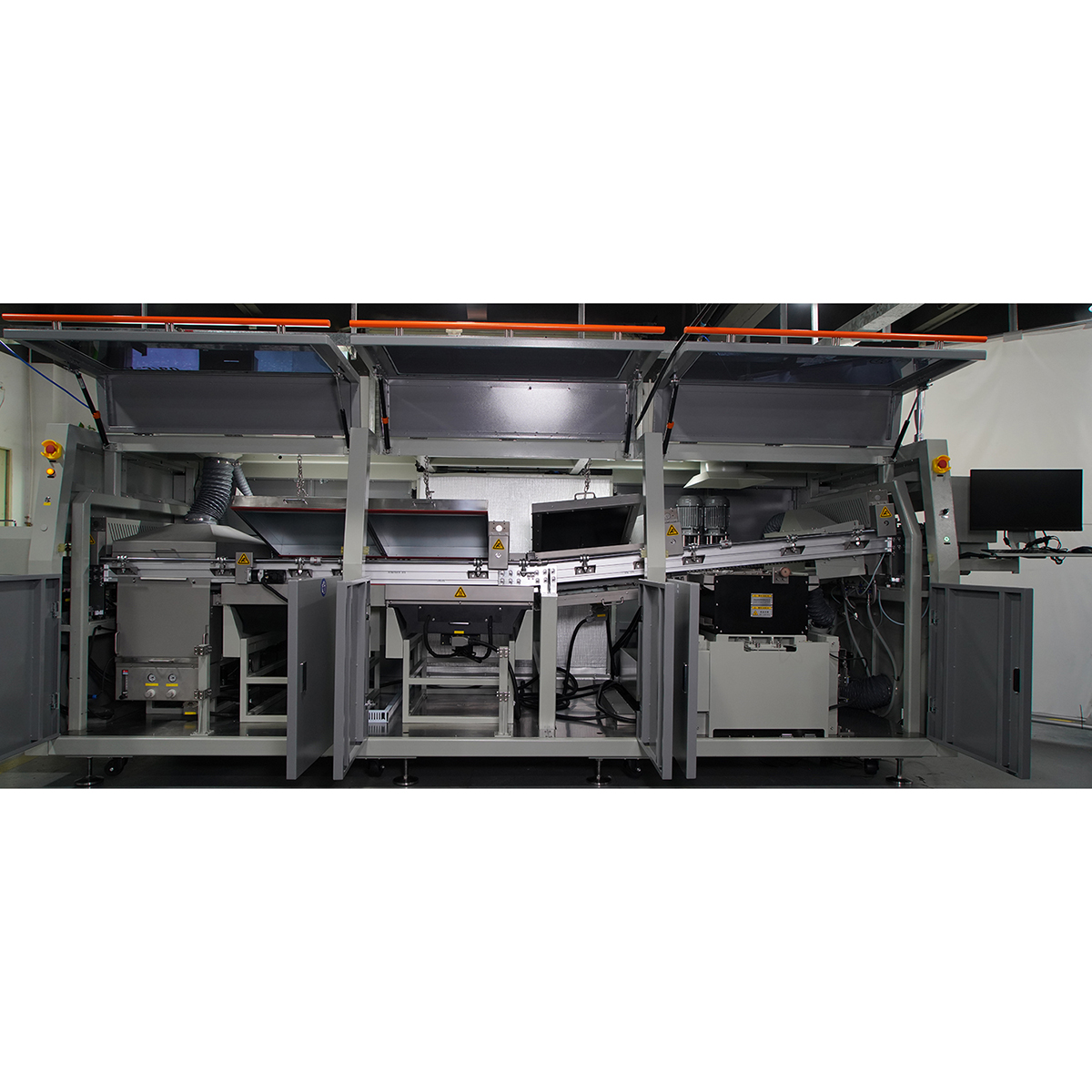

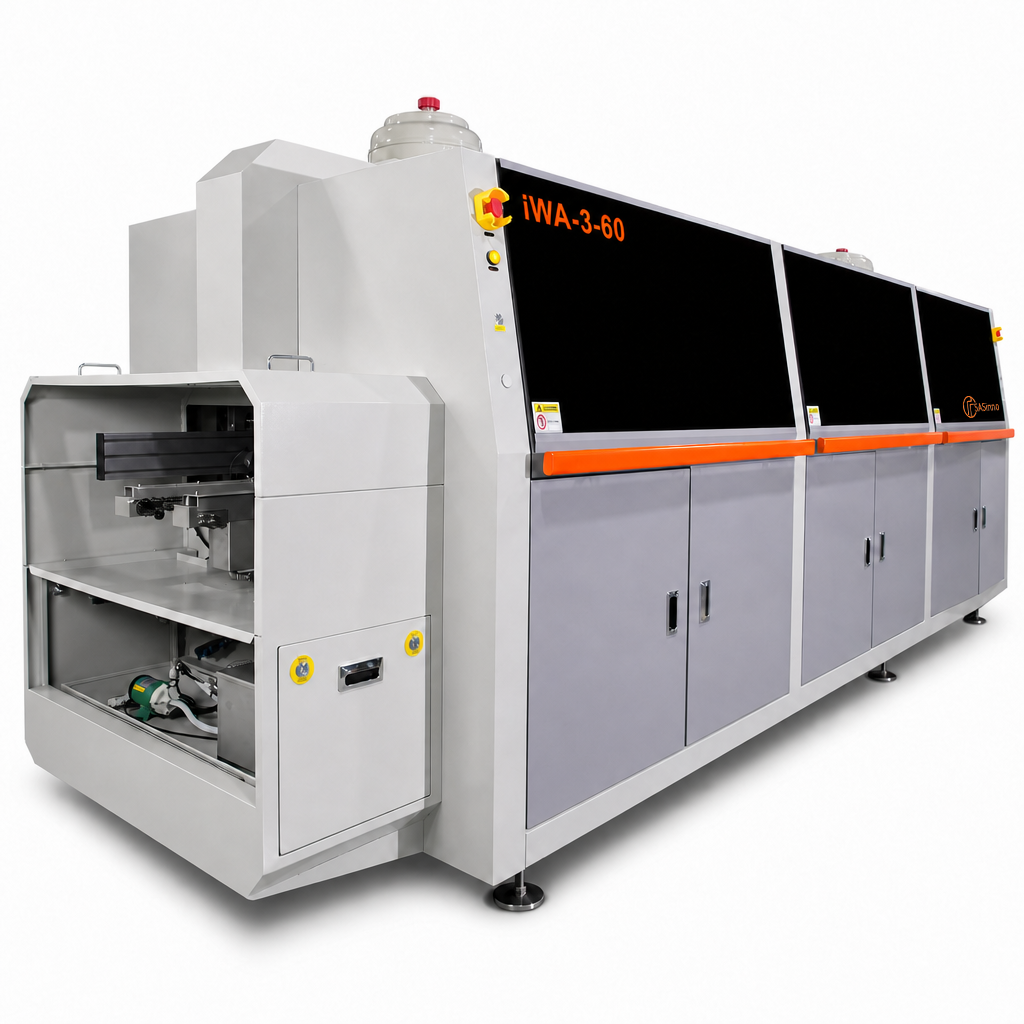

iWA Series Wave Solder Machine
iWA-3/60
Large PCB & high-volume production
The iWA-3-60 is a lead-free wave soldering machine for mass production of PCBs with through-hole plug-in components.Supports Max PCB width 600mm
Features
A new industrial design enhances the machine's appearance.
The PC + PLC control system ensures stable, safe and efficient operation with ease of use.
A simple, fully English software interface enables easy operation.
One-week timer enables automatic on/off to pre-melt solder before work starts.
Specialized guide rail with strong support reduces deformation。
Servo-driven sprayer allows adjustable speed and spraying width via software.
Non-stop selective flux spraying: use board/carrier images as backgrounds to set nozzle on/off times along the motion path, saving flux and reducing waste.
Option: Intelligent nitrogen control optimizes consumption and cost-effectiveness.
- Running power / General power
- 16 kW / 65 kW
- Power Supply
- 3-phase 380 V or 3-phase 220 V
- Machine Dimension
- 4980 (L) × 1735 (W) × 1942 (H) mm
- Control
- PC + Windows 11 (English interface)
- Conveyor
- Horizontal Chain + 6° Ti-finger conveyor
- Fluxer Type
- Spray
- Fluxer Clean
- Auto
- Spray Flux Path
- Selective
- Bottom Preheating Type
- Hot air convection + IR
- Top Preheating Type
- IR
- Removable Solder Pot
- Standard with trolley
- Solder Bar Auto Feed
- Option
- N₂ Protection
- Optional with direct N₂, short tunnel, and full tunnel
- N₂ Inline Heating
- Option
