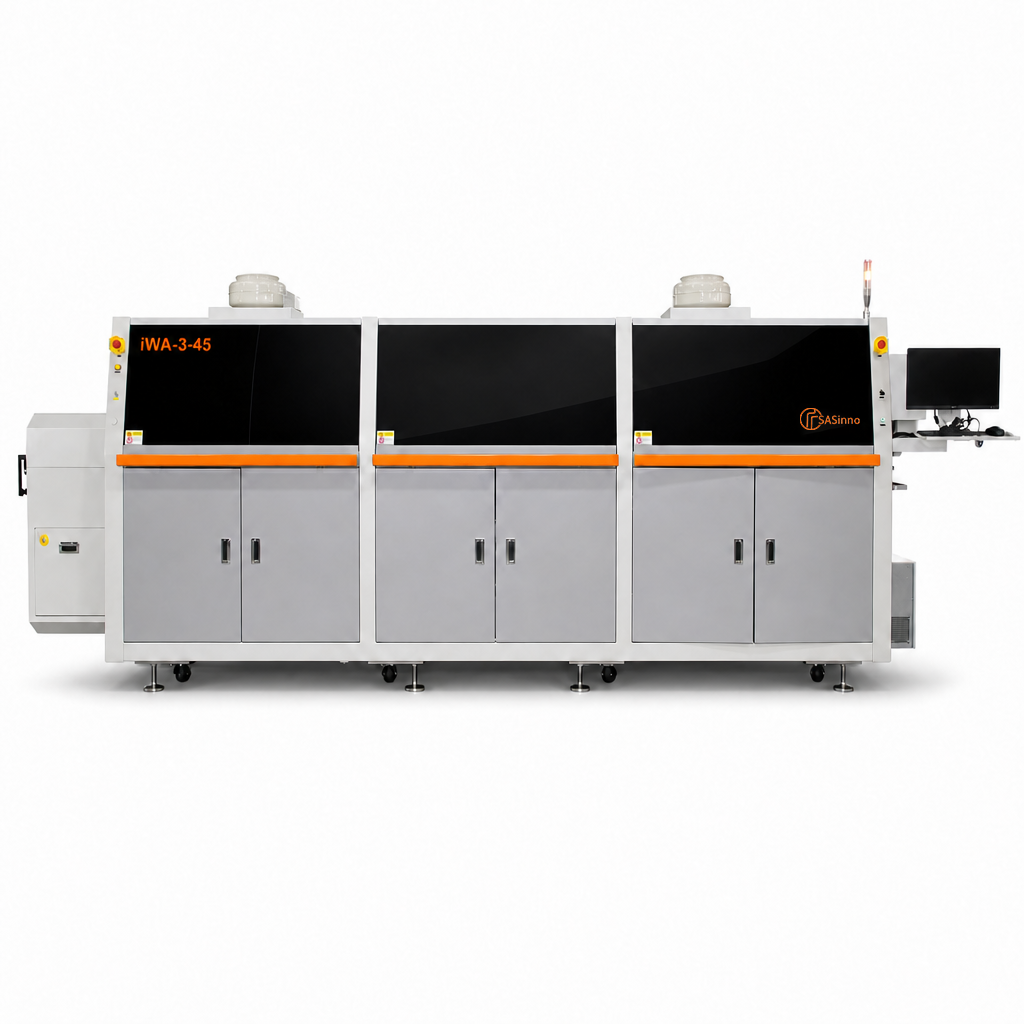

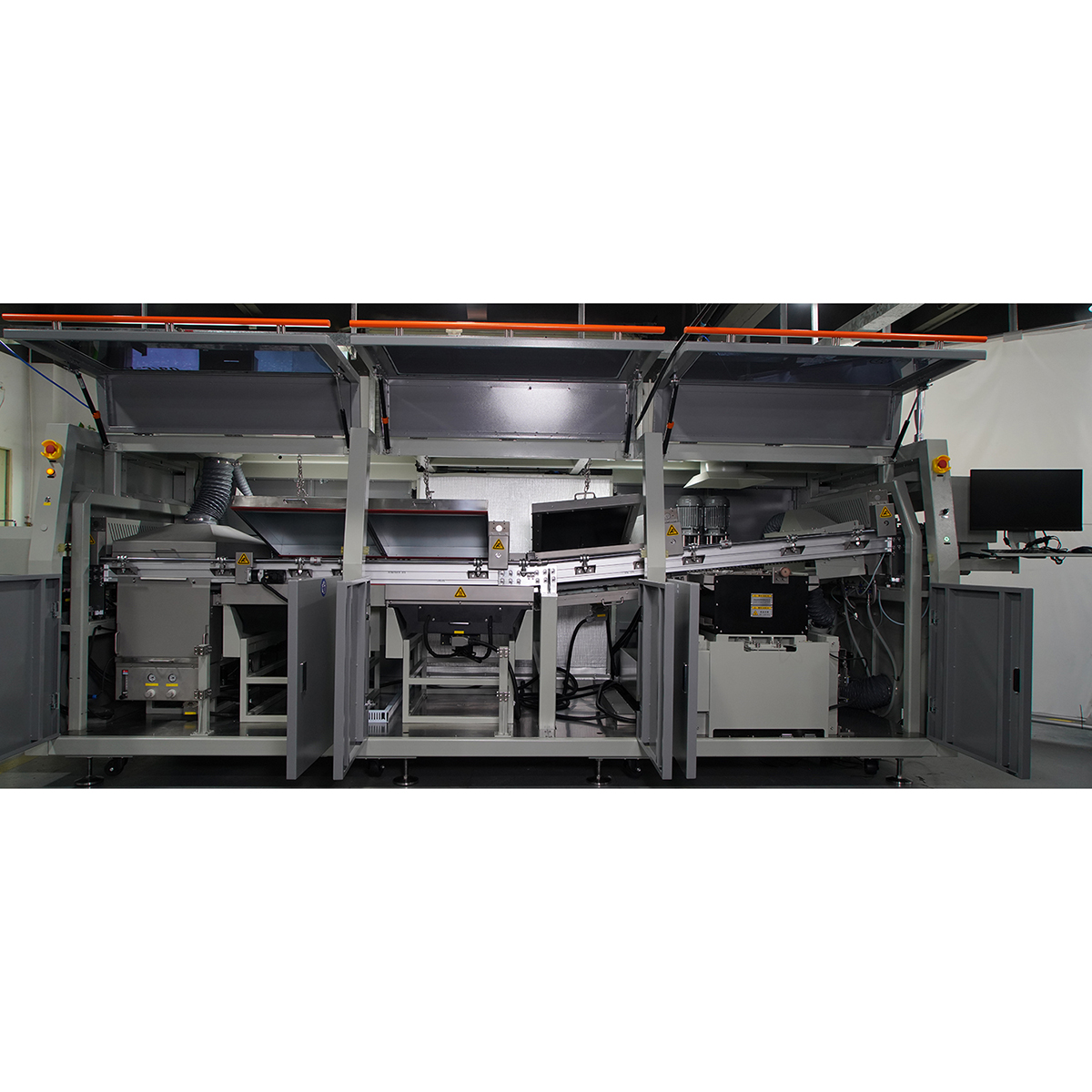

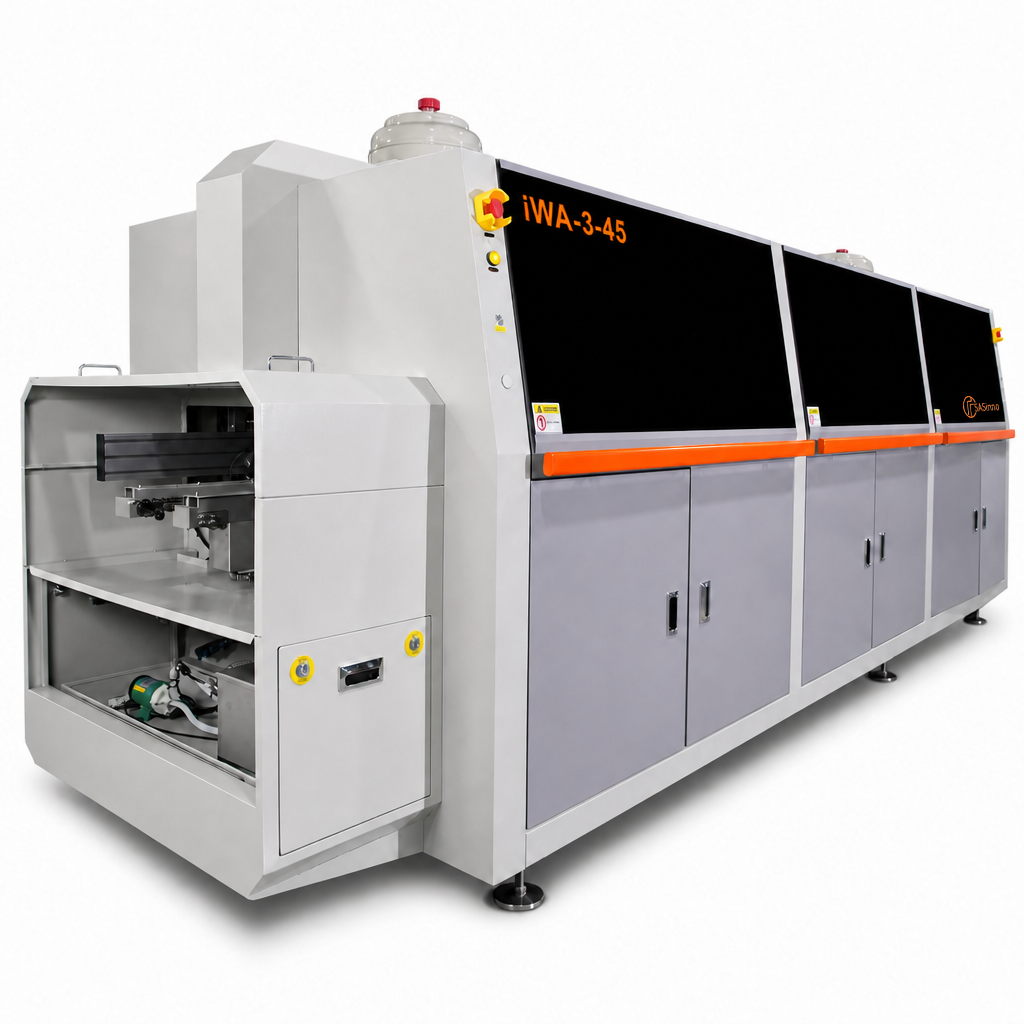

iWA Series Wave Solder Machine
iWA-3/45
Higher thermal requirement applications
The iWA-3-45 is a lead-free wave soldering machine for mass production of PCBs with through-hole plug-in components.Supports Max PCB width 450mm
Features
New industrial appearance design enhances the machine’s aesthetics.
PC + PLC control system ensures stable, safe, and efficient operation with ease of use.
Simple software interface, fully English, for effortless operation.
A one-week timer enables automatic on/off operation to pre-melt solder before work starts.
A specialized guide rail with strong support reduces deformation.
The servo-driven sprayer allows adjustable speed and spray width via software.
Non-stop selective flux spraying: use board/carrier images as backgrounds to set nozzle on/off times along the motion path.
Option: Intelligent nitrogen control optimizes consumption and cost-effectiveness.
- Running Power /General Power
- 15 kW / 60 kW
- Power Supply
- 3-phase 380 V or 3-phase 220 V
- Machine Dimensions
- 4980 (L) × 1585 (W) × 1942 (H) mm
- Control
- PC + English Windows11
- Conveyor
- Horizontal chain + 6° Ti finger conveyor
- Fluxer Type
- Spray
- Fluxer Clean
- Auto
- Spray Flux Path
- Selective
- Bottom Preheating Type
- Hot air convection + IR
- Top Preheating Type
- IR
- Removable Solder Pot
- Standard With Trolley
- Solder Bar Auto Feed
- Option
- N2 Protection
- Optional; direct N₂, short tunnel, and full tunnel configurations available
- N2 Inline Heating
- Option
