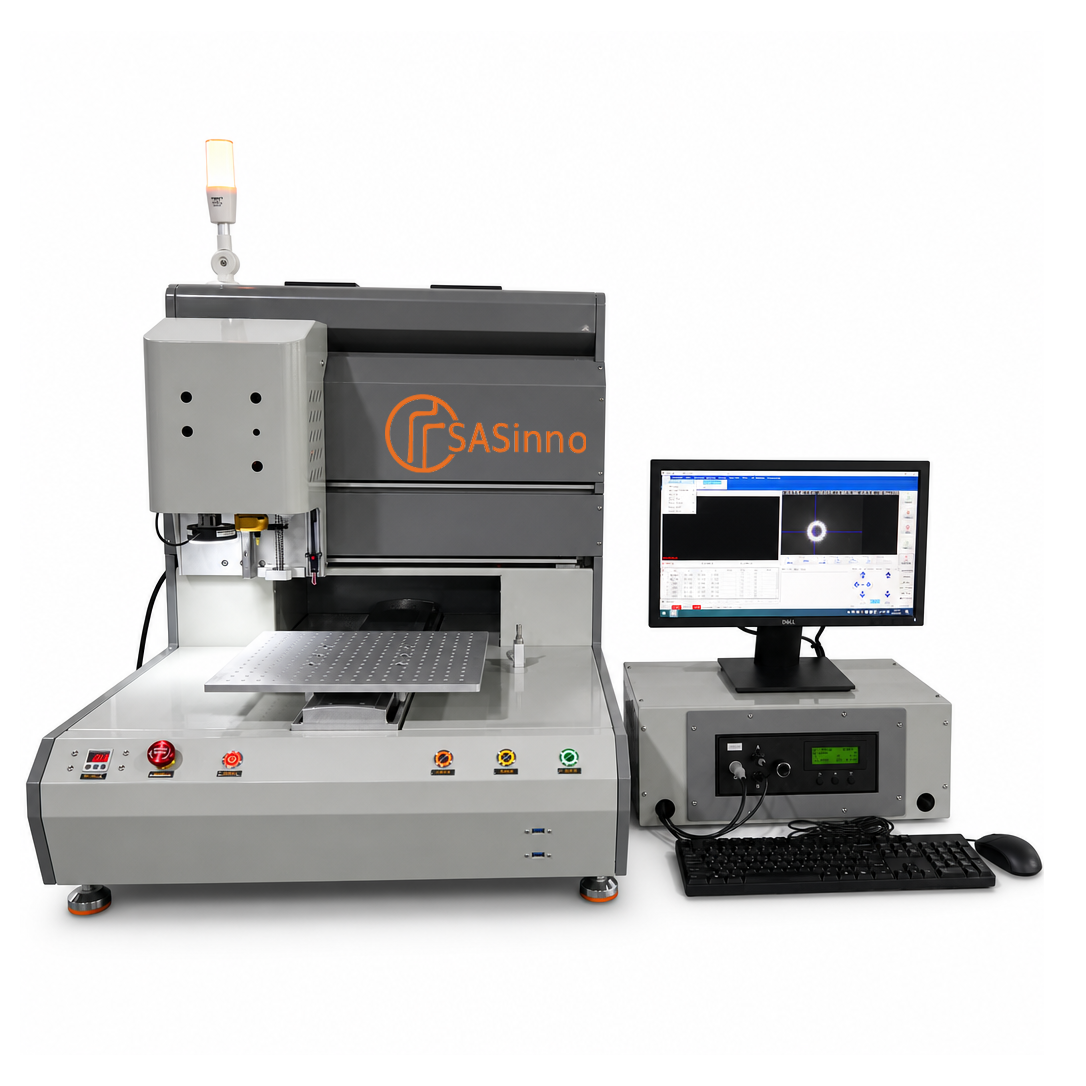

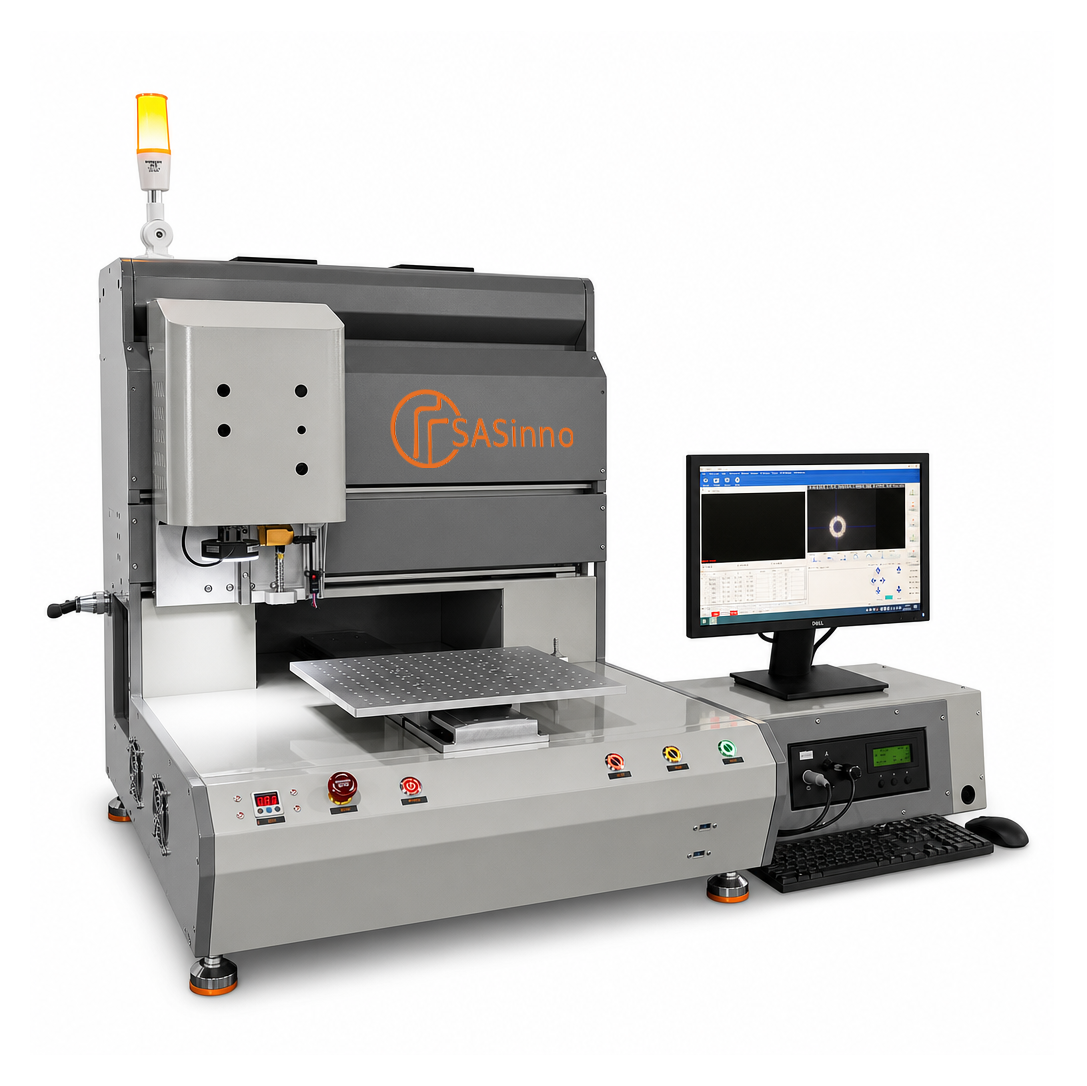

Benchtop Dispensing Machine
SD-400i
Entry tabletop / 1Valve / 1Table
High-precision visual dispenser, compatible, easy operation, stable and accurate.Dispensing area：350mm*300mm
Features
High-precision servo and ball-screw drive ensure stable, accurate operation.
Compatible with various precision dispensing valves for diverse application requirements.
CCD-based visual positioning enables easy and accurate programming.
Powerful software supports points, lines, circles, rectangles, and other graphics with position correction.
Automatic needle alignment and automatic Z-axis height calibration after needle replacement.
Industrial PC running Windows OS with full-English interface for simple operation.
- Control system
- Industrial computer / motion control card
- Axis number
- X, Y, Z axis
- Motion system
- Servo motors and ball screws
- Programming type
- Camera teaching
- CCD visual system
- Industrial CCD
- Power supply
- AC 220 V, 50–60 Hz
- Total power
- Approx. 2 kW
- Air requirement
- 0.6 MPa
